Product Details:
|
| Name: | Automatic High Speed Razor Blade Barbed Wire Making Machine | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Pressure: | 25Ton Or 40Ton | Voltage: | 380V,50Hz Or According To Client's Voltage |
| Producing Speed: | 220-280m/h | Dimension(mm): | 1100*1000*2000 |
| Type: | Fully Automatic | Warranty: | 2 Years |
| Product Name: | Razor Wire Mesh Machine | Material: | Galvanized Steel Sheet And Wire |
| Usage: | Automatic Control Operation | Thickness: | 0.5±0.05mm |
| High Light: | 0.5mm razor blade wire making machine,automatic razor blade wire making machine,fullyautomatic high speed barbed wire machine |
||

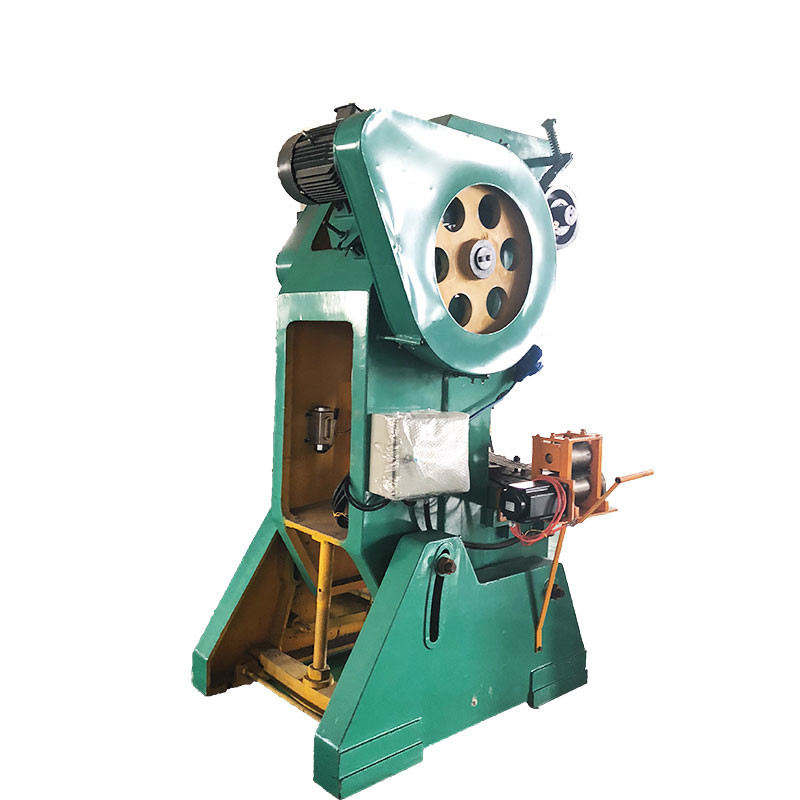

Automatic High Speed Razor Blade Barbed Wire Making Machine
Razor barbed wire machine mainly consists of punching machine and coil machine.
Punching machine cuts steel tapes in different razor shapes with different mould.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Application: Razor barbed wire is extensively used for security isolation of military facilities, communication stations,power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
|
|
Punching machine |
Coiling machine |
|
Speed |
220-280m/h |
800 kgs/ 8hours |
|
Thickness |
0.5±0.05mm |
2.5mm |
|
Motor |
2.2 kw |
1.5kw |
|
Voltage |
Customized as request |
Customized as request |
|
Weight |
2200kgs |
300kgs |
|
Dimension |
1100*1000*2000mm |
1100*750*1200 |
|
Raw material |
Hot dipped galvanized steel sheet; Stainless steel sheet |
Hot dipped galvanized wire |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm | |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm | |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm | |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm | |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm | |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm | |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm | |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm | |
1)Razor Barbed Wire Making Machine Warranty: One Year.
2)Enough spare parts of machines could be supplied.
3)Factory Own Designing and Inspection Team.
4)All machines were tested and adjusted before delivery.
5)Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6)24 hours technical support by e-mail or calling service.
