Product Details:
|
| Name: | Concertina Razor Barbed Wire Machine , Razor Barbed Wire Machine | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Pressure: | 25Ton Or 40Ton | Voltage: | 380V, 50Hz Or According To Client's Voltage |
| Producing Speed: | 220-280m/h | Dimension(mm): | 1100*1000*2000 |
| Warranty: | 2 Years | Product Name: | Razor Barbed Wire |
| Application: | Prison,highway,make Razor Barbed Wire | Material: | Galvanized Wire,Galvanized Steel Sheet And Wire |
| Usage: | Automatic Control Operation | Thickness: | 0.5±0.05mm |
| High Light: | Concertina Razor Blade Wire Making Machine,Galvanized Razor Blade Wire Making Machine,Automatic Concertina Razor Barbed Wire Machine |
||
Concertina Razor Barbed Wire Machine , Razor Barbed Wire Machine

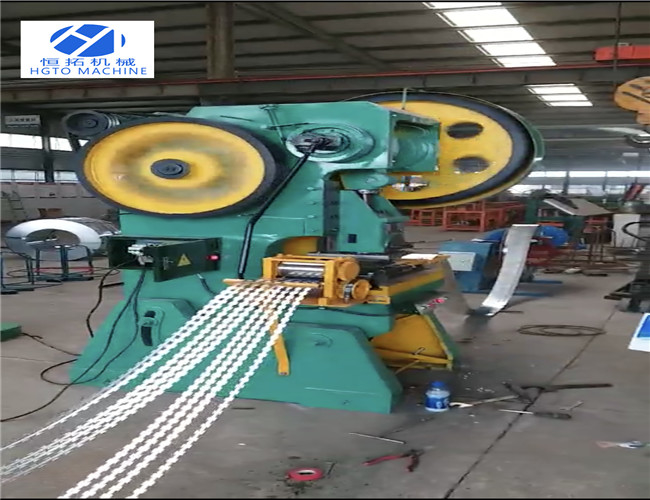

It mainly consists of decoiler, punching machine, recoiler, razor wire covering machine, control cabinet etc.
This type has advantages of easy operation,easy maintain,high speed and low energy consumption.

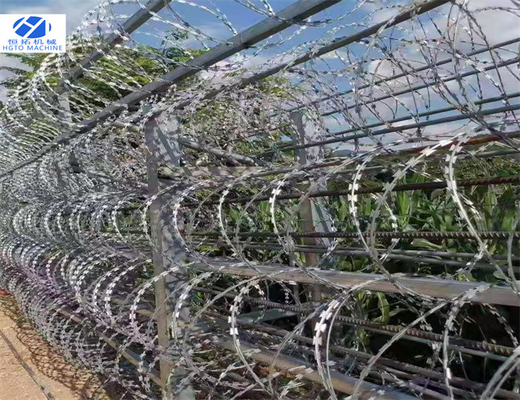

The finished razor wire is widely used on security isolation of military facilities, stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms etc.
| MODEL | 25T | 40T | 63T | COILING MACHINE |
| VOLTAGE | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| POWER | 4KW | 5.5KW | 7.5KW | 1.5KW |
| PRODUCING SPEED | 70TIMES/MIN | 75TIMES/MIN | 120TIMES/MIN | 3-4TON/8H |
| PRESSURE | 25TON | 40TON | 63TON | -- |
| MATERIAL THICKNESS AND WIRE DIAMETER | 0.5±0.05(mm),according to customers' requirement | 2.5MM | ||
| MATERIAL OF SHEET | GI and stainless steel | GI and stainless steel | GI and stainless steel | ----- |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm | |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm | |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm | |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm | |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm | |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm | |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm | |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm | |
FAQ:
Q: Where is your factory located?
A: Our factory is located in Shijiazhuang and DingZhou county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have our own technology develop department and testing deparment.
Q: What's the guarantee time for your machines?
A: Our guarantee time is1 year since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. Your customs clearance is no problem.
