Product Details:
|
| Name: | Security Galvanized Concertina Razor Barbed Wire Making Machine | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Pressure: | 25Ton Or 40Ton | Voltage: | 380V,50Hz Or According To Client's Voltage |
| Producing Speed: | 220-280m/h | Dimension(mm): | 1100*1000*2000 |
| Type: | Fully Automatic | Warranty: | 2 Years |
| Product Name: | Razor Wire Mesh Machine | Material: | Galvanized Steel Sheet And Wire |
| Usage: | Automatic Control Operation | Thickness: | 0.5±0.05mm |
| High Light: | Anticorrosive Razor Blade Wire Making Machine,Multiscene Razor Blade Wire Making Machine,Galvanized Concertina Wire Making Machine |
||
Security Galvanized Concertina Razor Barbed Wire Making Machine

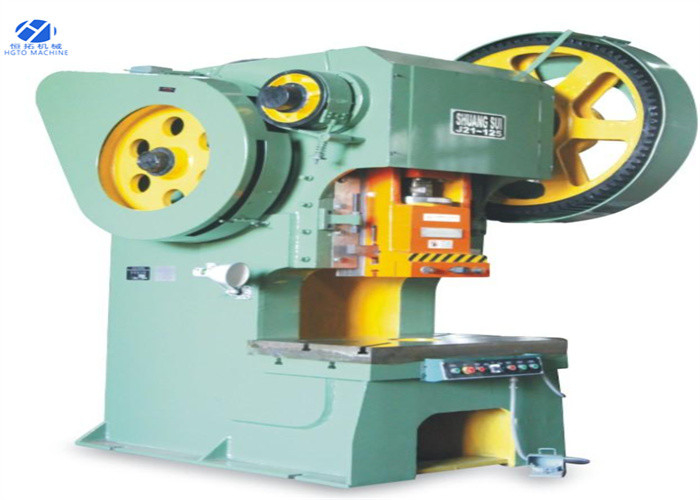

Razor barbed wire machine mainly consists of punching machine and coil machine.
Punching machine cuts steel tapes in different razor shapes with different mould.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Application:
Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
| MODEL | 25T | 40T | 63T | COILING MACHINE |
| VOLTAGE | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| POWER | 4KW | 5.5KW | 7.5KW | 1.5KW |
| PRODUCING SPEED | 70TIMES/MIN | 75TIMES/MIN | 120TIMES/MIN | 3-4TON/8H |
| PRESSURE | 25TON | 40TON | 63TON | -- |
| MATERIAL THICKNESS AND WIRE DIAMETER | 0.5±0.05(mm),according to customers' requirement | 2.5MM | ||
| MATERIAL OF SHEET | GI and stainless steel | GI and stainless steel | GI and stainless steel | ----- |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm | |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm | |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm | |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm | |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm | |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm | |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm | |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm | |
FAQ:
Q: Where is your factory located?
A: Our factory is located in Shijiazhuang and DingZhou county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have our own technology develop department and testing deparment.
Q: What's the guarantee time for your machines?
A: Our guarantee time is1 year since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. Your customs clearance is no problem.
