Product Details:
|
| Name: | Communication Stations Use Galvanized Concertina Razor Barbed Wire Making Machine | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Pressure: | 25Ton Or 40Ton | Voltage: | 380V, 50Hz Or According To Client's Voltage |
| Producing Speed: | 220-280m/h | Dimension(mm): | 1100*1000*2000 |
| Type: | Fully Automatic | Warranty: | 2 Years |
| Product Name: | Razor Wire Mesh Machine | Material: | Galvanized Steel Sheet And Wire |
| Usage: | Automatic Control Operation | Thickness: | 0.5±0.05mm |
| High Light: | Anti Seismic Razor Blade Grinding Machine,Concertina Razor Blade Grinding Machine,Automatic Concertina Wire Machine |
||
Communication Stations Use Galvanized Concertina Razor Barbed Wire Making Machine

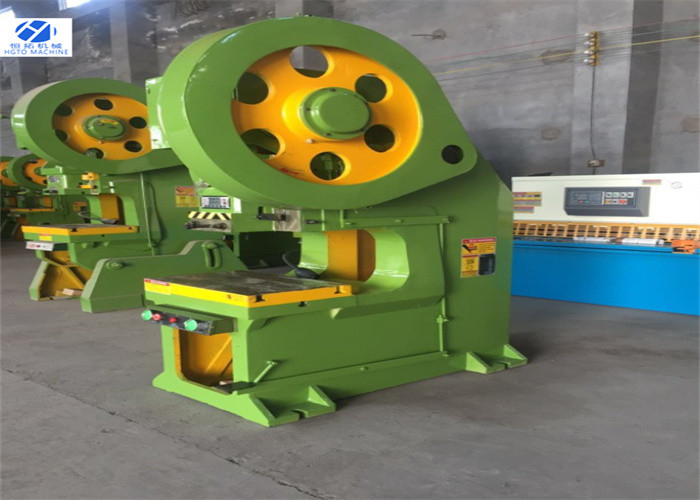

Razor barbed wire machine mainly consists of punching machine and coil machine.
Punching machine cuts steel tapes in different razor shapes with different mould.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Application:
Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
| MODEL | 25T | 40T | 63T | COILING MACHINE |
| VOLTAGE | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| POWER | 4KW | 5.5KW | 7.5KW | 1.5KW |
| PRODUCING SPEED | 70TIMES/MIN | 75TIMES/MIN | 120TIMES/MIN | 3-4TON/8H |
| PRESSURE | 25TON | 40TON | 63TON | -- |
| MATERIAL THICKNESS AND WIRE DIAMETER | 0.5±0.05(mm),according to customers' requirement | 2.5MM | ||
| MATERIAL OF SHEET | GI and stainless steel | GI and stainless steel | GI and stainless steel | ----- |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm | |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm | |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm | |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm | |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm | |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm | |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm | |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm | |
