Product Details:
|
| Name: | Razor Blade Making Machine Factory Price | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Pressure: | 25Ton Or 40Ton | Voltage: | 380V,50Hz Or According To Client's Voltage |
| Producing Speed: | 220-280m/h | Dimension(mm): | 1100*1000*2000 |
| Type: | Fully Automatic | Warranty: | 2 Years |
| Product Name: | Razor Wire Mesh Machine | Material: | Galvanized Steel Sheet And Wire |
| Usage: | Automatic Control Operation | Thickness: | 0.5±0.05mm |
| High Light: | bto-12 razor blade wire making machine,fullyautomatic razor blade wire making machine,bto-12 concertina razor barbed wire machine |
||
razor blade making machine factory price

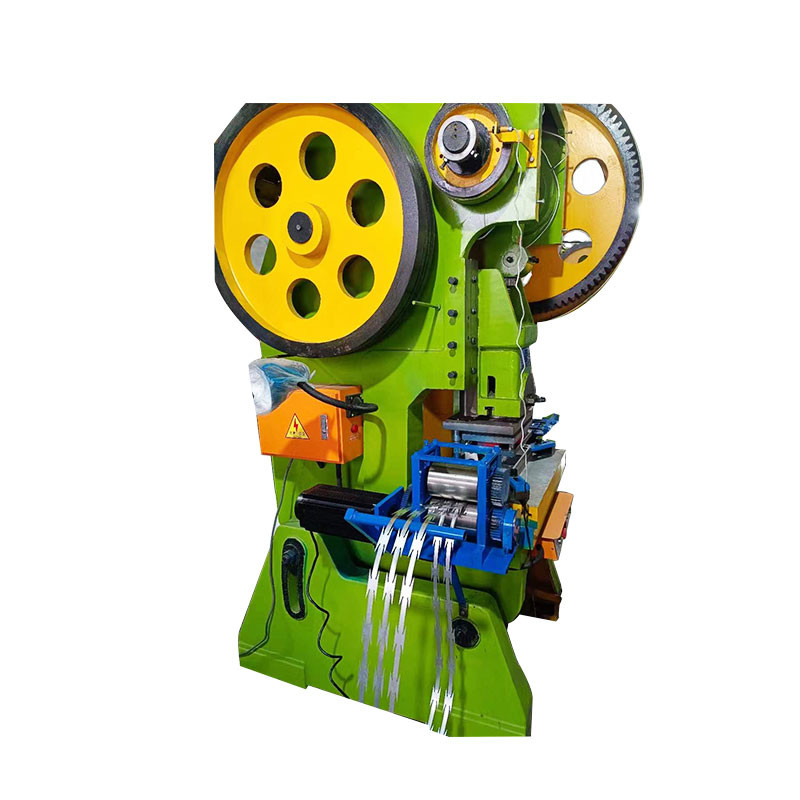

Razor barbed wire machine mainly consists of punching machine and coil machine.
Punching machine cuts steel tapes in different razor shapes with different mould.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Application: Razor barbed wire is extensively used for security isolation of military facilities, communication stations,power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
| MODEL | 25T | 40T | 63T | COILING MACHINE |
| VOLTAGE | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| POWER | 4KW | 5.5KW | 7.5KW | 1.5KW |
| PRODUCING SPEED | 70TIMES/MIN | 75TIMES/MIN | 120TIMES/MIN | 3-4TON/8H |
| PRESSURE | 25TON | 40TON | 63TON | -- |
| MATERIAL THICKNESS AND WIRE DIAMETER | 0.5±0.05(mm),according to customers' requirement | 2.5MM | ||
| MATERIAL OF SHEET | GI and stainless steel | GI and stainless steel | GI and stainless steel | ----- |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm | |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm | |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm | |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm | |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm | |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm | |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm | |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm | |
Guarantee:Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts were broken caused by the product problem, seller will offer the parts by free. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller. The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer’s country.
