Product Details:
|
| Name: | Factory Concertina Razor Barbed Wire Making Machine | Key Selling Points: | Competitive Price |
|---|---|---|---|
| Pressure: | 25Ton Or 40Ton | Voltage: | 380V, 50Hz Or According To Client's Voltage |
| Producing Speed: | 220-280m/h | Dimension(mm): | 1100*1000*2000 |
| Type: | Fully Automatic | Warranty: | 2 Years |
| Product Name: | Razor Wire Mesh Machine | Material: | Galvanized Steel Sheet And Wire |
| Usage: | Automatic Control Operation | Thickness: | 0. 5±0. 05mm |
| High Light: | bto-30 razor blade wire making machine,concertina razor blade wire making machine,bto-30 barbed wire making machine |
||

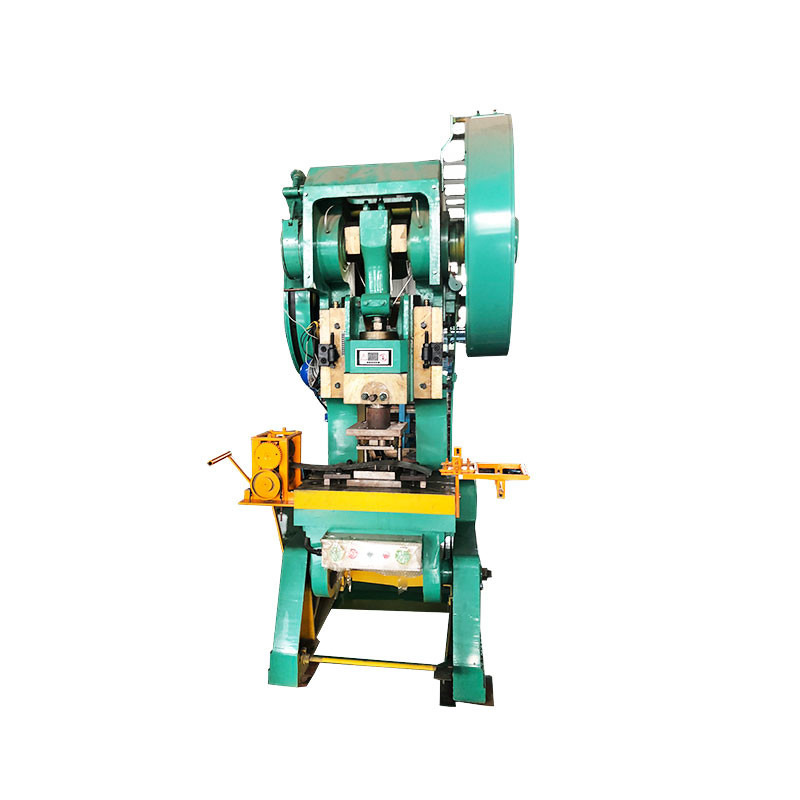

Factory Concertina Razor Barbed Wire Making Machine
Concertina razor barbed wire machine, also called Razor barbed wire machine.
It mainly consists of decoiler, punching machine, recoiler , razor wire covering machine, control cabinet etc.
This type has advantages of easy operation,easy maintain,high speed and low energy consumption.
The finished razor wire is widely used on security isolation of military facilities, stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms etc.
| MODEL | 25T | 40T | 63T | COILING MACHINE |
| VOLTAGE | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| POWER | 4KW | 5.5KW | 7.5KW | 1.5KW |
| PRODUCING SPEED | 70TIMES/MIN | 75TIMES/MIN | 120TIMES/MIN | 3-4TON/8H |
| PRESSURE | 25TON | 40TON | 63TON | -- |
| MATERIAL THICKNESS AND WIRE DIAMETER | 0.5±0.05(mm),according to customers' requirement | 2.5MM | ||
| MATERIAL OF SHEET | GI and stainless steel | GI and stainless steel | GI and stainless steel | ----- |
BLADE TYPES:
| STYLE | BARBE LENGTH | BARB WIDTH | BARB SPACE | STEEL TAPE SHAPE |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |  |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm | |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm | |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm | |
| BT0-22 | 22±1mm | 15±1mm | 48±1mm | |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm | |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm | |
| BTO-60 | 60±1mm | 32±1mm | 96±1mm | |
| BTO-65 | 65±1mm | 21±1mm | 100±1mm | |
