Product Details:
|
| Name: | 2500mm Width Hexagonal Wire Mesh Machine | Keyword: | Hexagonal Wire Mesh Machine |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000mm | Type: | High Speed |
| Motor: | Inverted Motor | Wire Diameter: | 0.38-2.5mm |
| Warranty: | 2 Years | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized | Mesh Type: | Rolling Mesh |
| High Light: | 2500mm hexagonal wire mesh machine,0.38mm hexagonal wire mesh machine,high speed hexagonal mesh machine |
||

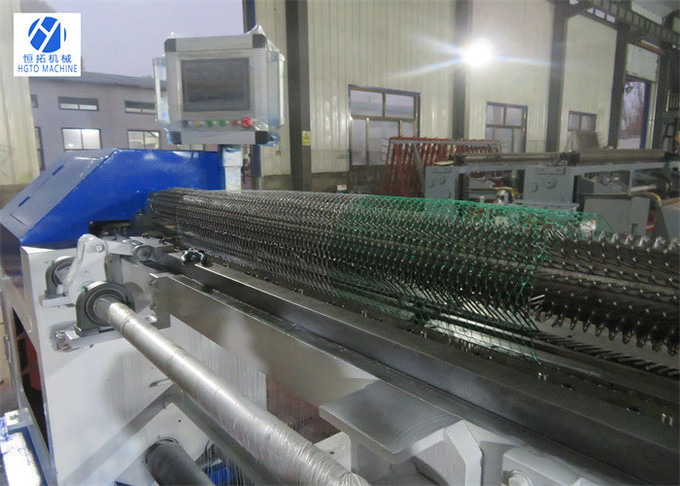

0.38mm 2500mm Width Hexagonal Wire Mesh Machine High Speed
Advantage of 2500mm width hexagonal wire mesh machine:
smooth operation, low noise, fast weaving speed.the whole hexagonal wire mesh equipment is saving electricity.more labor-saving, as a result of the elimination of the spring process, one hexagonal wire mesh equipment is enough, skilled workers can operate two hexagonal wire mesh equipment.
Specification of our CNC hexagonal wire mesh machine:
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| Remark:Can manufacture customized type | ||||||
Finished Mesh:
Factory Image:
