Product Details:
|
| Name: | 30mm , 1.2 Inch , Poultry Cage , Plc Hexagonal Wire Mesh Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Wire Diameter: | 0.4-2.2mm | Warranty: | 2 Years |
| Type: | Fully Automatic | Application: | For Wire Mesh |
| Mesh Size: | Can Be Customizable | Mesh Width: | Can Be Customizable |
| Control System: | PLC+touch Screen | Mesh Type: | Rolling Mesh |
| High Light: | PLC Steel Mesh Making Machine,30mm Steel Mesh Making Machine,Antishock Wire Mesh Manufacturing Machine |
||

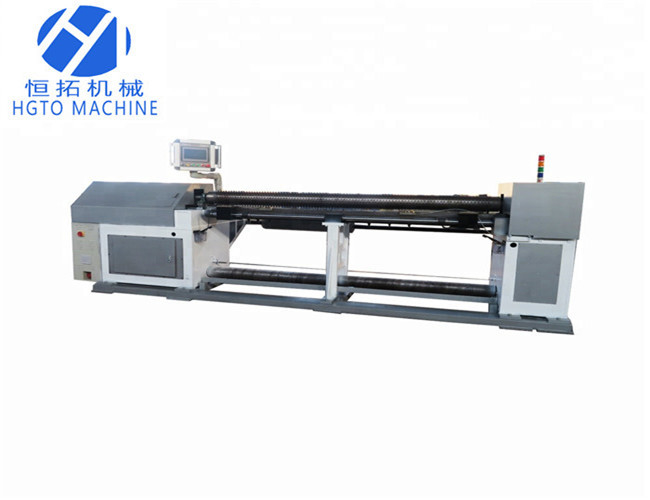

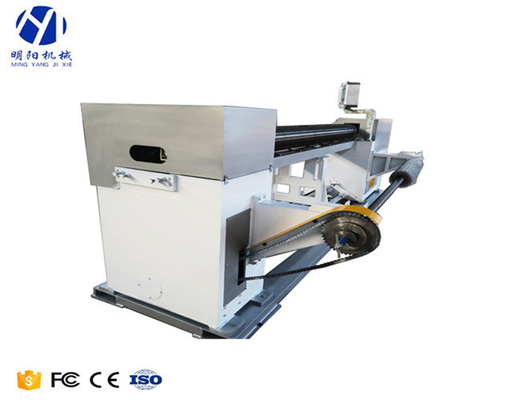

30mm , 1.2 Inch , Poultry Cage , Plc Hexagonal Wire Mesh Machine
Technical Parameters:
| Raw material | Galvanized steel wire, PVC coated wire |
| Wire diameter | Normally 0.40-2.2mm |
| Mesh size | 1/2"(15mm); 1"(25mm or 28mm); 2"(50mm); 3"(75mm or 80mm)............ |
| Mesh width | can be customized according to customer requirements |
| Working speed |
If your mesh size is 1/2'',it is about 80M/h If your mesh size is 1'',it is about 120M/h |
| Number of twist | 6 |
| Note |
1. One set machine can only do one mesh opening. 2. We accept an special orders from any clients. |
Advantages of Plc Hexagonal Wire Mesh Machine :
1. This machine can produce the hexagonal wire mesh with two ways twists; it has characters of
smooth running and high efficiency.
2. A full set reverse twisted hexagonal wire mesh making machine include main machine and
spool winding machine
3. Our machine adopts automatic stop system, once there are any broken wires, it will be stopped
automatically.
4. By improving the transmission parts, the noise is greatly reduced.
5. Our products use high-precision ball screw and linear guide rail, reduce the load of click, improve the precision of twist, in addition, the bearing steel material makes it more wear-resistant and longer life
6. We designed a friction plate in the part of the net, using the spring pressure to easily adjust the speed of the net.
