Product Details:
|
| Name: | 1.5inch , 40mm , Poutry Cage Plc Hexagonal Wire Mesh Machine | Weight: | 4-5.7 T |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000mm | Type: | HGTO |
| Motor: | 4.4kw+7.5kw*2 | Material: | Iron Wire Or PVC Wire |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Video Technical Support, Field Installation, Commissioning And Training | Type: | High Speed |
| Application: | For Hexagonal Wire Mesh | Mesh Size: | 40-45mm |
| Control System: | PLC+touch Screen | Mesh Type: | Roll Form |
| High Light: | 1.5inch Chicken Wire Mesh Making Machine,Multiscene Chicken Wire Mesh Making Machine,Anti Seismic Steel Wire Mesh Machine |
||
1.5inch , 40mm , Poutry Cage Plc Hexagonal Wire Mesh Machine
Usage of straight and reverse hexagonal wire mesh:
(a) used for husbandry, for example, feeding chicken.
(b) used in petroleum, construction, farming, chemical industry, and pipes parcel wire mesh.
(c) used for fencing, residential and landscape protection, etc.
Technical Parameters
| Raw material | Galvanized steel wire,PVC coated wire |
| Wire diameter | Normally 0.40-2.2mm |
| Mesh size | 1/2"(15mm); 1"(25mm or 28mm); 2"(50mm); 3"(75mm or 80mm)............ |
| Mesh width | can be customized according to customer requirements |
| Working speed |
If your mesh size is 1/2'',it is about 80M/h If your mesh size is 1'',it is about 120M/h |
| Number of twist | 6 |
| Note |
1. One set machine can only do one mesh opening. 2. We accept an special orders from any clients. |
The machine can be designed as your request
Our Advantages
1. Grid counter alarm to stop machine (when wire/ mesh broken, or preset numbers into zero).
International famous brand components:Best domestic
2. Tidy mesh with/ without reinforcement wire between any holes.
3. Servo motor to drive weaving process, more precise, adjustable speed, running fast, less noise.
4. Automatically wind up mesh into rolls.
5. Auto-stop machine function when the wire is broken.
6. Inching / Single-step control button, easy to operate.
7. Automatically central lubrication system to reduce machine damages;
8. Can weave 2-4 scopes of the net with the same machine.

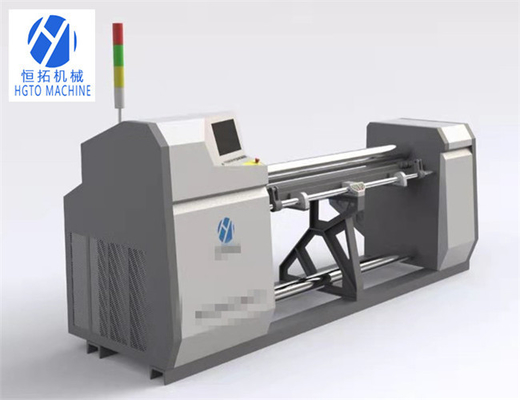

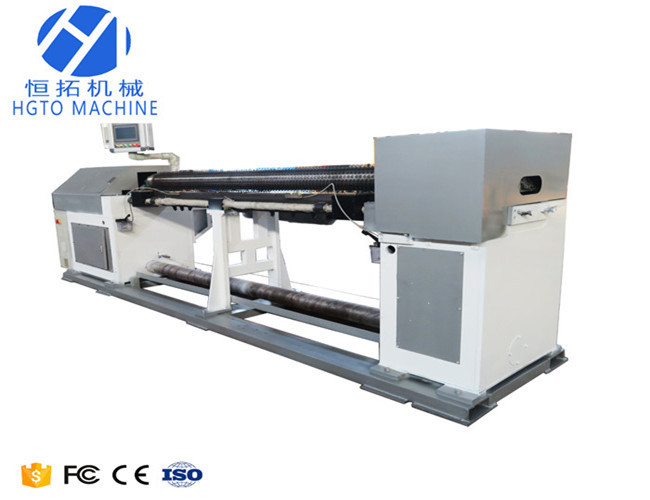

Machine Image:
Finish Mesh Image:
The strength of our factory:
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, PET hexagonal wire mesh machine,Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine,weld wire mesh machine,nail making machine and so on.
