Product Details:
|
| Name: | Automatic Gi Barbed Wire Making Machine Factory | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | high output barbed wire machine,gi barbed wire machine,fully automatic razor wire machine |
||
Automatic Gi Barbed Wire Making Machine Factory
The barbed wire making machine is divided into double strand barbed wire making machine (CS-A), single strand barbed wire making machine (CS-B), Positive and negative twist barbed wire making machine (CS-C), blade razor barbed wire machine.
The double wire positive and negative twisting barbed wire machine (CS-C) is composed of positive and negative twisting, barbed winding and friction rope take-up, and is equipped with four take-up discs.
This machine has the advantages of convenient operation, stable action, low noise and energy saving, and adopts advanced electronic counting control.the products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

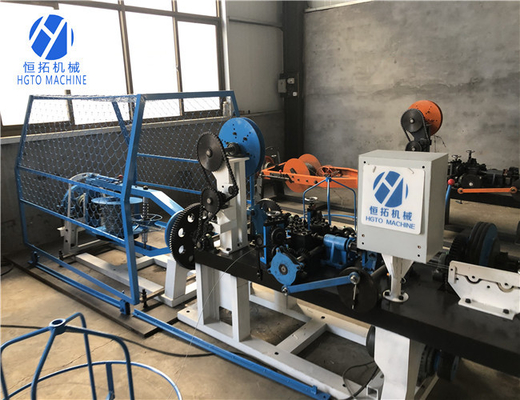

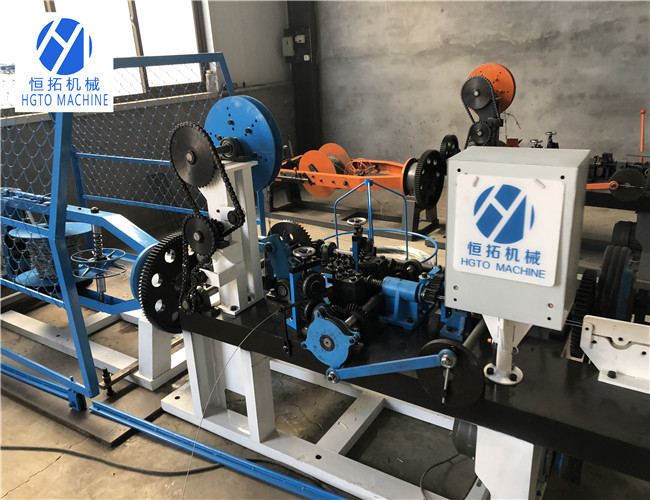

Machine Pictures:
