Product Details:
|
| Name: | Prison High Security Double - Strand Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | Concertina Barbed Wire Machine,Galvanized Barbed Wire Machine,3KW Concertina Razor Barbed Wire Machine |
||
Prison High Security Double - Strand Barbed Wire Mesh Making Machine
Finished wire General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.
Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly used in protecting of grass boundary, railway, highway, wine ,prison .etc.
The barbed wire machine is divided into :
1 . Double wire barbed wire machine (CS-A)
2 . Single wire barbed wire machine (CS-B)
3 . Reverse twist barbed wire machine (CS-C)
FEATURES :
1 .Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory , thus saving customers'time and expense of equipment commissioning
2 . We provide one year's guarantee , and once the equipment damage during this period of time , we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3 . Our company Including equipments maintenance , troubleshooting and customer feedback.
4 . Complete after-sales service.
5 . We can make machines according to customer's requirements.
Our machine can provide various technical specifications and customization options:
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

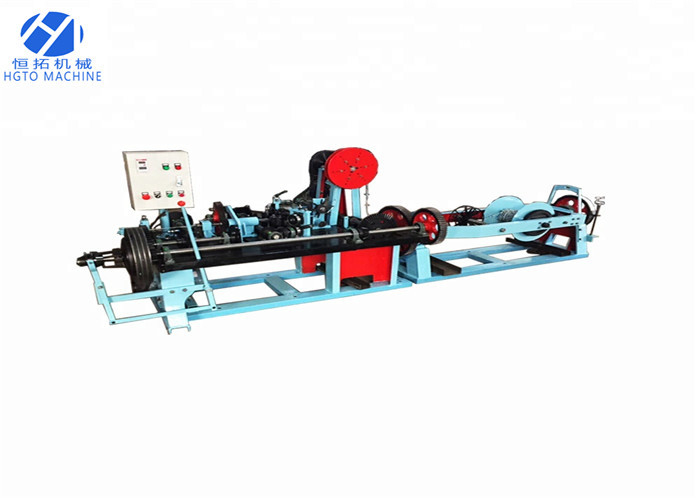

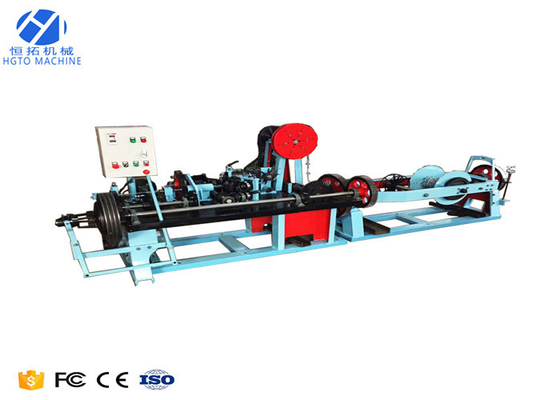

Machine Pictures:
