Product Details:
|
| Name: | Safety Anti - Climbing Double Strand Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | Razor Barbed Wire Machine,Anti Seismic Barbed Wire Machine,Multifunctional Razor Wire Machine |
||
Safety Anti - Climbing Double Strand Barbed Wire Mesh Making Machine
Common double strand barbed wire machine adopts hot dipped galvanized wire or PVC coated iron wire as raw material to make quality barbed wires, which is used in military defense, highway, railway, agriculture and livestock farming areas as protection and isolation fence.
Surface treatment: Electro galvanized wire, hot-dipped galvanized wire, pvc coated wire..
FEATURES :
1 . Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory , thus saving customers'time and expense of equipment commissioning
2 . We provide one year's guarantee , and once the equipment damage during this period of time , we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3 . Our company Including equipments maintenance , troubleshooting and customer feedback.
4 . Complete after-sales service.
5 . We can make machines according to customer's requirements.
Our machine can provide various technical specifications and customization options:
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |
FAQ:
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging.
Q: How long is your delivery time?
A:It will be 25- 30 days after received your deposit.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. your customs clearance will be no problem..
Q: Why choose us?
A. We have an inspection team to check the products at all stages of the manufacturing process-raw material100% inspection in assembly line to achieve the required quality levels.Our guarantee time is 2 years since the machine was installed in your factory.

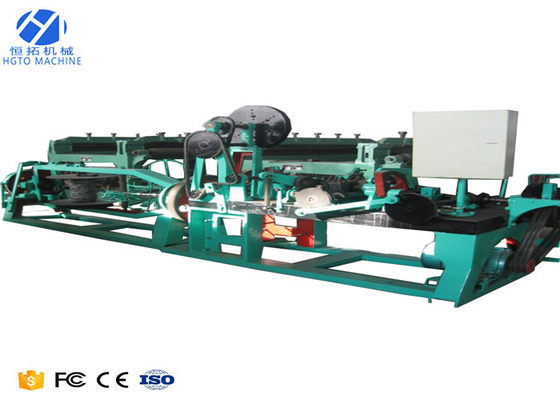

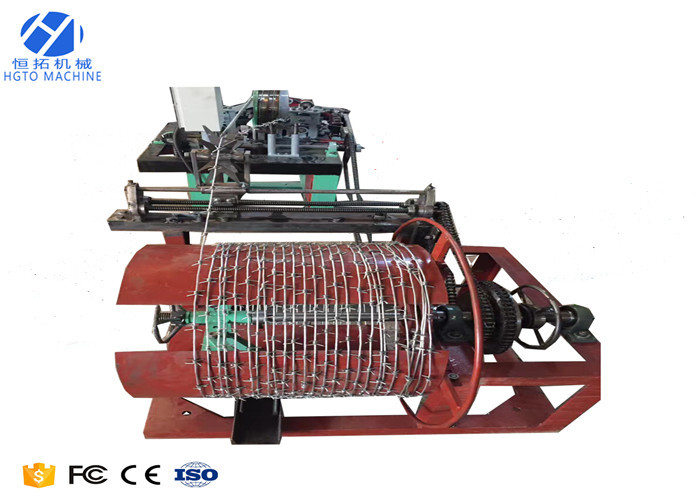

Machine Pictures:
