Product Details:
|
| Name: | Machine To Make Barbed Wire South Africa Barbed Wire | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | 2strand automatic barbed wire making machine,1.6mm automatic barbed wire making machine,fully automatic razor wire making machine |
||
Machine to make barbed wire south africa barbed wire
The barbed wire making machine is divided into double strand barbed wire making machine (CS-A), single strand barbed wire making machine (CS-B), Positive and negative twist barbed wire making machine (CS-C), blade razor barbed wire machine.
The double wire positive and negative twisting barbed wire machine (CS-C) is composed of positive and negative twisting, barbed winding and friction rope take-up, and is equipped with four take-up discs.
This machine has the advantages of convenient operation, stable action, low noise and energy saving, and adopts advanced electronic counting control.the products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

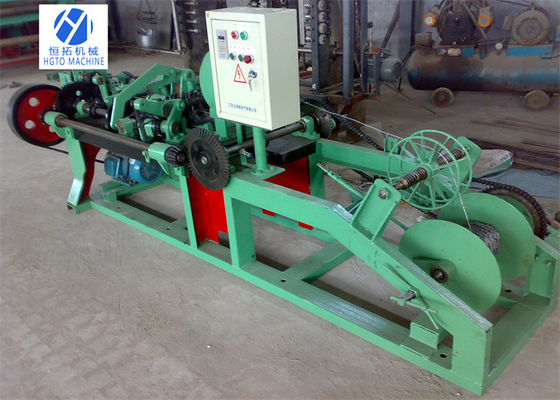

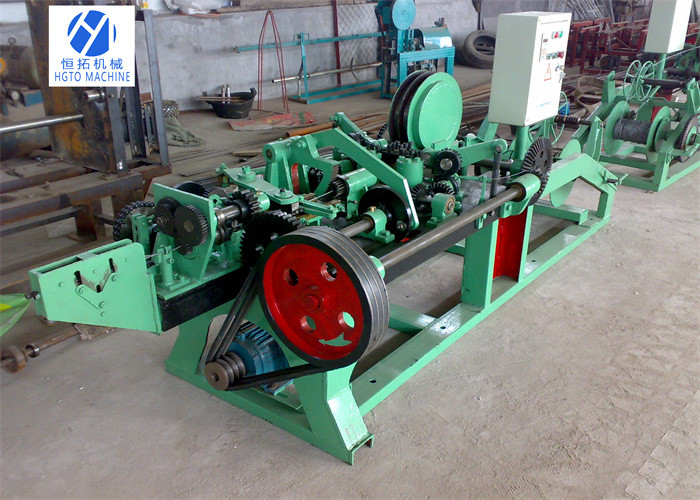

Machine Pictures:
