Product Details:
|
| Name: | Best Price High Quality Barbed Wire Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | high speed making barbed wire machine,fullyautomatic single barbed wire machine,fullyautomatic barbed wire fencing manufacturing machine |
||
Best Price High Quality Barbed Wire Making Machine
The barbed wire machine is divided into :
1 . Double wire barbed wire machine (CS-A)
2 . Single wire barbed wire machine (CS-B)
3 . Reverse twist barbed wire machine (CS-C)
General Use: Double Twist Barbed Wire is a kind of modern security fencing materials fabricated with high-tensile wire. Double Twist Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

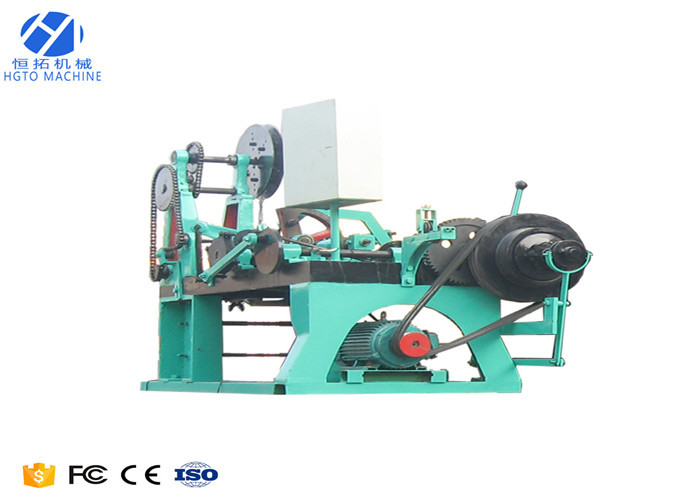

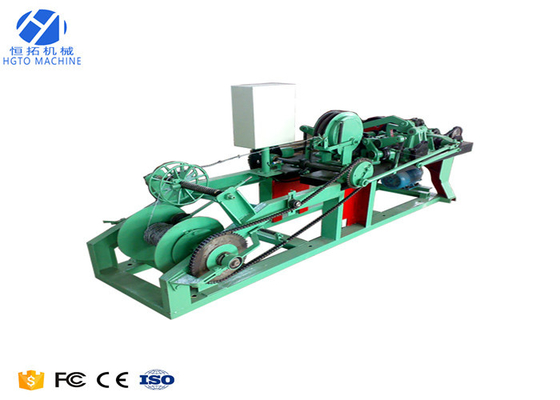

Machine Pictures:
