Product Details:
|
| Name: | CNC Hexagonal Wire Mesh Weaving Machine For Courtyard Wall | Weight: | 4-5.7t |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000mm | Type: | High Speed |
| Motor: | Inverted Motor | Wire Diameter: | 0.38-2.5mm |
| Warranty: | 2 Years | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized | Mesh Type: | Rolling Mesh |
| High Light: | 3000mm hexagonal wire mesh machine,courtyard wall hexagonal wire mesh machine,cnc hexagonal mesh machine |
||
CNC Hexagonal Wire Mesh Weaving Machine For Courtyard Wall
Advantage of PLC hexagonal wire mesh machine:
Smooth operation, low noise, fast weaving speed.The whole equipment is saving electricity.More labor-saving, as a result of the elimination of the spring process, one equipment is enough, skilled workers can operate two equipment.
Specification of our CNC hexagonal wire mesh machine:
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| Remark:Can manufacture customized type | ||||||
Company Brief:
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine, weld wire mesh machine, nail making machine and so on.
All departments work together to make sure all the machines and products good quality and supply good after-sales service. Due to the joint efforts of all staff, our products are exported to many countries, and gain good reputation and long cooperation from domestic and overseas.

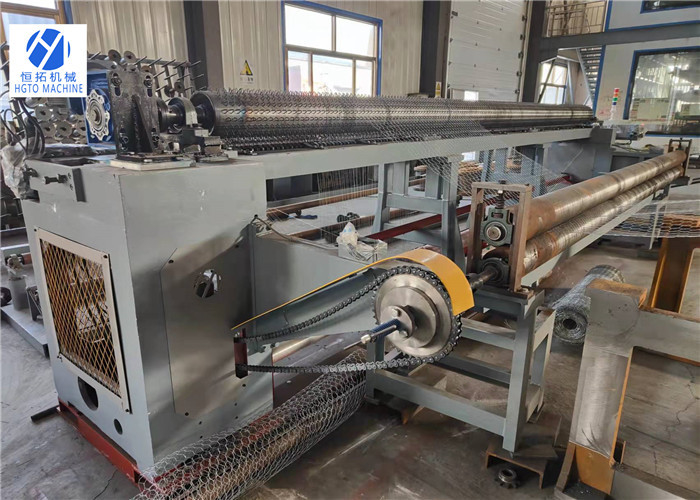

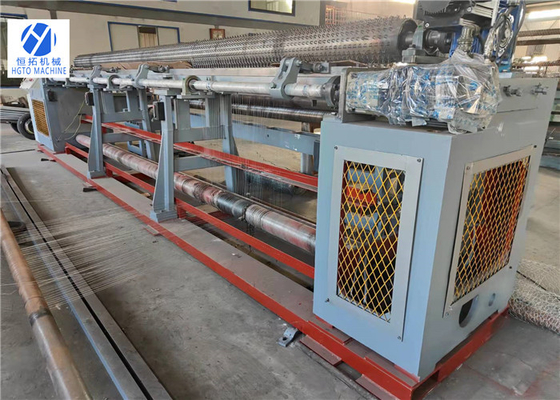

Machine Detail:
Finished Mesh:
Factory Image:
