Product Details:
|
| Name: | PLC Hexagonal Wire Mesh Machine For Pavement Reinforcement | Weight: | 4-5.7t |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000mm | Type: | High Speed |
| Motor: | Inverted Motor | Wire Diameter: | 0.38-2.5mm |
| Warranty: | 2 Years | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized | Mesh Type: | Rolling Mesh |
| High Light: | 0.38mm hexagonal netting machine,plc hexagonal netting machine,duck cage hexagonal wire mesh machine |
||
PLC Hexagonal Wire Mesh Machine For Duck Cage
Advantage of PLC hexagonal wire mesh machine:
Smooth operation, low noise, fast weaving speed.The whole equipment is saving electricity.More labor-saving, as a result of the elimination of the spring process, one equipment is enough, skilled workers can operate two equipment.
Fault protection, overload protection, motor if overload or the device will automatically stop and alarm if the power is suddenly increased, and the screen will be displayed Indicate the fault location without damage to the mechanical structure.
Power off protection function, the equipment in the process of running suddenly power off, The system will run for a short time to record the location of the power outage, and then The work can be carried out smoothly without adjustment when the power is switched on.
.
Specification of our CNC hexagonal wire mesh machine:
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| Remark:Can manufacture customized type | ||||||

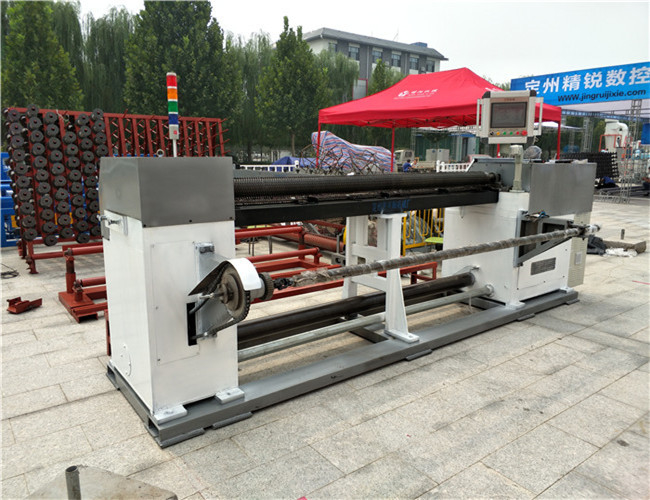

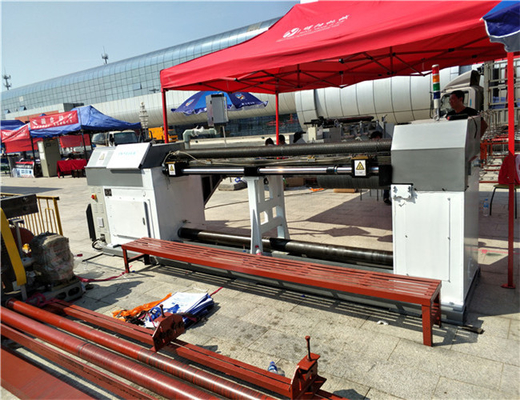

Machine Detail:
Finished Mesh:
Factory Image:
