Product Details:
|
| Brand: | 3kw , 380v , Double - Strand Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Wire Diameter: | 1.6-3.0 | Distance: | 3-6inch |
| Output: | 740-1485m/h | Warranty: | 2 Years |
| Surface Treatment: | Galvanized,standard Galvanized Or Heavy Galvanized,PVC Coated Or Galvanized | Razor Type: | Single Twisted And Double Twisted |
| Application: | Produce Barbed Wire | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | Agriculture Barbed Wire Machine,Highway Barbed Wire Machine,Double Strand Barbed Wire Fencing Equipment |
||
3kw , 380v , Double - Strand Barbed Wire Mesh Making Machine
Double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, and supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.
Surface treatment:
Electro galvanized wire, hot-dipped galvanized wire, pvc coated wire..
Application:
Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function, national defense, animal husbandry, playground fence, agriculture, expressway, etc.
We always keep the best professional design and manufacturing technology in this barbed wire machines with over 30 years experience.
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |
Attention: we can design the machine according to your wire diameter,wire raw materials and wire barbed.
Advance Technologies:
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button switches and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.

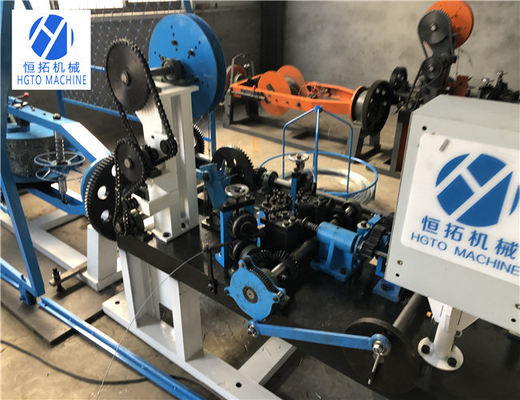

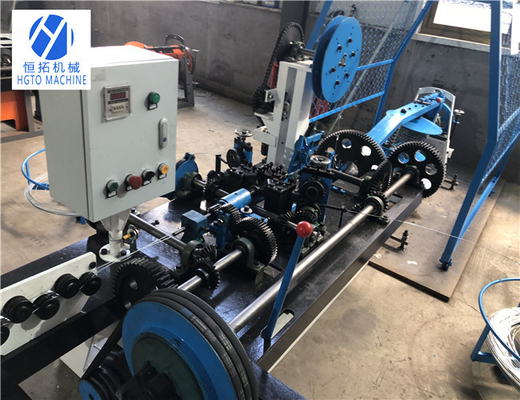

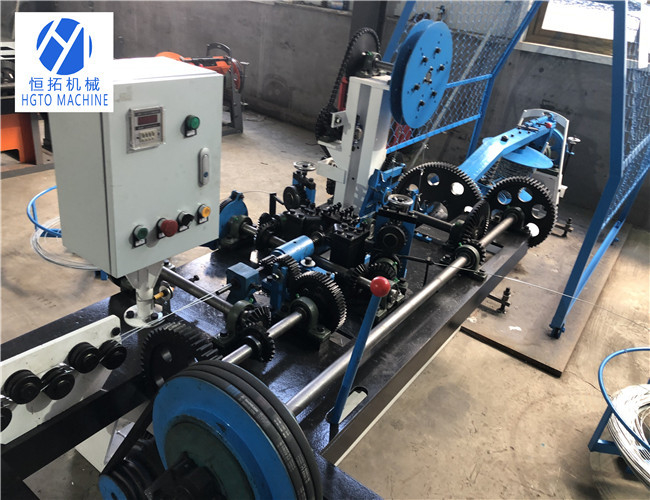

Machine Pictures:
