Product Details:
|
| Name: | Safety Anti - Climbing Protection Use Double Strand Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | Double Strand Barbed Wire Machine,Multifunctional Barbed Wire Machine,High Speed Barbed Wire Machine |
||
Safety Anti - Climbing Protection Use Double Strand Barbed Wire Mesh Making Machine
Barbed Wire Making Machine is designed to produce hot dip or electro galvanized, barbed steel wires with structure in 2-wire stranded line and Traditional Twisted Barbs. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
Surface treatment: Electro galvanized wire, hot-dipped galvanized wire, pvc coated wire..
FEATURES :
1 . Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory , thus saving customers'time and expense of equipment commissioning
2 . We provide one year's guarantee , and once the equipment damage during this period of time , we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3 . Our company Including equipments maintenance , troubleshooting and customer feedback.
4 . Complete after-sales service.
5 . We can make machines according to customer's requirements.
Our machine can provide various technical specifications and customization options:
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

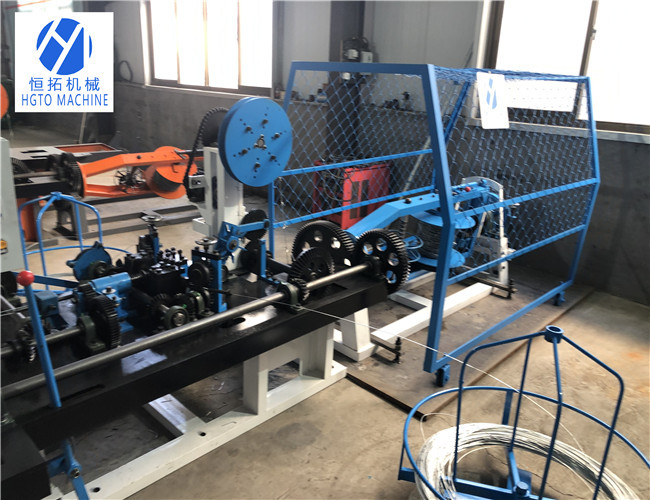

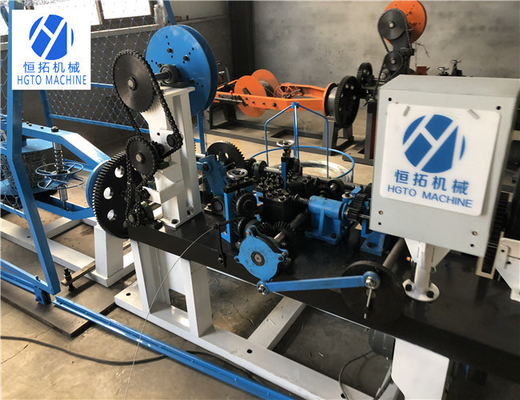

Machine Pictures:
