Product Details:
|
| Name: | CS-B , Railway Use , Single Twisted Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6 Inch | Output: | 740-1485m/h |
| Type: | Barbed Wire Coil | Machine Type: | Barbed Wire Machine |
| Barbed Wire Diameter: | 1.6-2.8mm | Warranty: | Two Years |
| High Light: | Fireproof Barbed Wire Machine,1 Twisted Barbed Wire Machine,Anti Seismic Fence Panel Machine |
||
CS-B , Railway Use , Single Twisted Barbed Wire Mesh Making Machine
The barbed wire machine is divided into :
1 . Double wire barbed wire machine (CS-A)
2 . Single wire barbed wire machine (CS-B)
3 . Reverse twist barbed wire machine (CS-C)
Barbed wire machine is composed of two parts: positive and negative twisting, winding and friction wire-drawing, and four wire-drawing trays are matched.
Barbed Wire Making Machine produces barbed wire. Barbed wire is used for protection use, in playground fence, livestock feeding or national boarder , in national defense, agriculture, animal husbandry, expressway, etc. We always keep the best professional design and manufacturing technology in this barbed wire machines for many years.
FEATURES :
1 .Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory , thus saving customers'time and expense of equipment commissioning
2 . We provide one year's guarantee , and once the equipment damage during this period of time , we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3 . Our company Including equipments maintenance , troubleshooting and customer feedback.
4 . Complete after-sales service.
5 . We can make machines according to customer's requirements.
Our machine can provide various technical specifications and customization options:
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

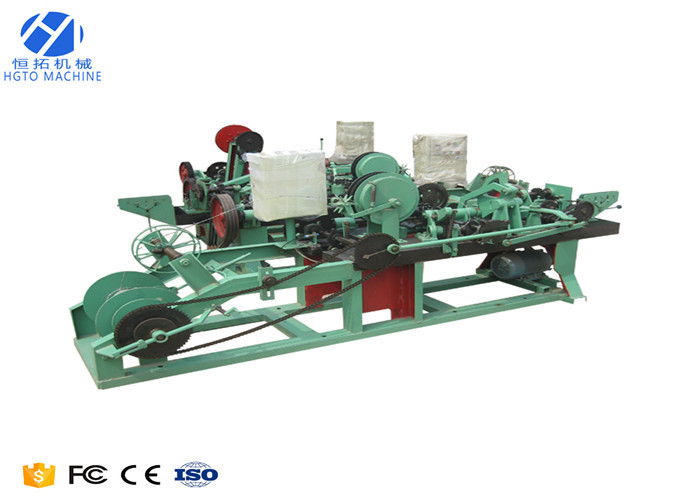

Machine Pictures:
