Product Details:
|
| Name: | CS-B , Railway Use , Single Twisted Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | 1000kg Barbed Wire Fencing Manufacturing Machine,Railway Barbed Wire Fencing Manufacturing Machine,Single Twisted Barbed Wire Fencing Machine |
||
CS-B , Railway Use , Single Twisted Barbed Wire Mesh Making Machine
The barbed wire machine is divided into :
1 . Double wire barbed wire machine (CS-A)
2 . Single wire barbed wire machine (CS-B)
3 . Reverse twist barbed wire machine (CS-C)
Barbed wire machine is composed of two parts: positive and negative twisting, winding and friction wire-drawing, and four wire-drawing trays are matched.
HGTO Machinery manufacture and export barbed wire making machines with our rich industry knowledge. It is widely used in different engineering industries.
The barbed wire manufacturing machine uses high-quality basic components and advanced technology to manufacture. The machine provided can provide various technical specifications and customization options.
These barbed wire machines are easy to operate and are suitable for making wires of different specifications.You can buy an automatic high speed barbed wire making machine from us at an affordable price.
FEATURES :
1 . Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory , thus saving customers'time and expense of equipment commissioning
2 . We provide one year's guarantee , and once the equipment damage during this period of time , we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3 . Our company Including equipments maintenance , troubleshooting and customer feedback.
4 . Complete after-sales service.
5 . We can make machines according to customer's requirements.
Our machine can provide various technical specifications and customization options:
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

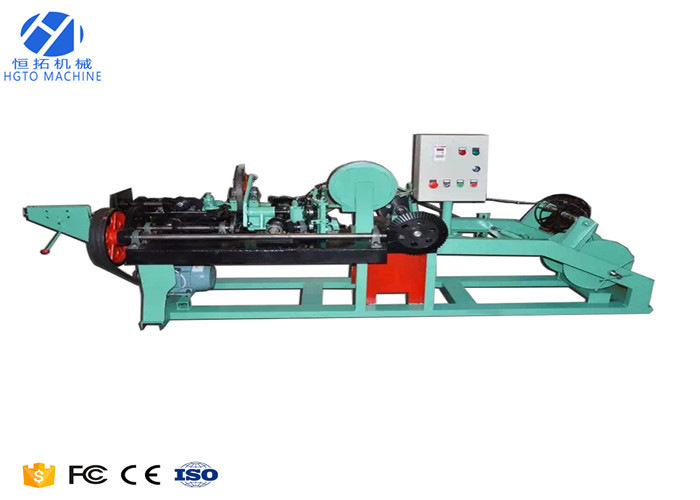

Machine Pictures:
