Product Details:
|
| Name: | High Speed PLC Control Wire Mesh Welding Machine For Rabbit Cage | Mesh Size: | 50*50 Mm-200*200 Mm |
|---|---|---|---|
| Weld By Minutes: | 60-100 Times | Place Of Origin: | Hebei,China |
| Warranty: | 1year | Type: | Welding Wire Machine |
| Core Components: | PLC,MOTOR | Wire Diameter: | 5-12mm |
| Color: | Can Be Customized | Voltage: | 380V/50HZ/Customized |
| Control System: | PLC | Width: | 2500mm |
| High Light: | Rabbit Cage Wire Mesh Welding Machine,5mm Wire Mesh Welding Machine,LCD Mesh Welding Equipment |
||
High Speed PLC Control Wire Mesh Welding Machine For Rabbit Cage
The whole equipment adopts PLC programming control, user-friendly operation interface, easy to operate and master, mesh size adjustment can be edited through LCD touch screen, all production data setting is convenient and fast. Operating system, CNC servo system, stable performance, meet the needs of high-speed welding mesh.
The operation platform has two selection modes: manual and automatic.
The parameters of the servo net drawing system can be set and stored in PLC without losing when power is off.
the cross wire feeding in systm by coil feeding in,
in Chinese the cross wire by coil feeding in we had made for nearly 12 years, this one is the fourth one we had producted, so the working progress can be smooth, and the working speeding also quick then the others like cross wire pre cut in system.
| Product type | HGTO-hwj |
| Working speed max. | 60-90Times/Min. |
| Width range of wire mesh | ≤1600mm |
| Longitudinal wire spacing | ≧20mm variable from mm it can be adjusted |
| Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Control method | PLC programming control, servo stepper system |
| Welding cylinders number | 48pcs |

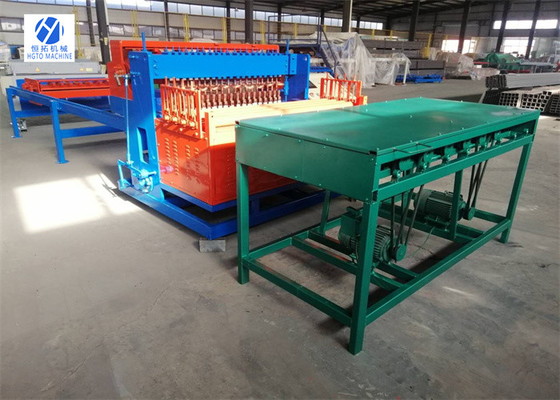

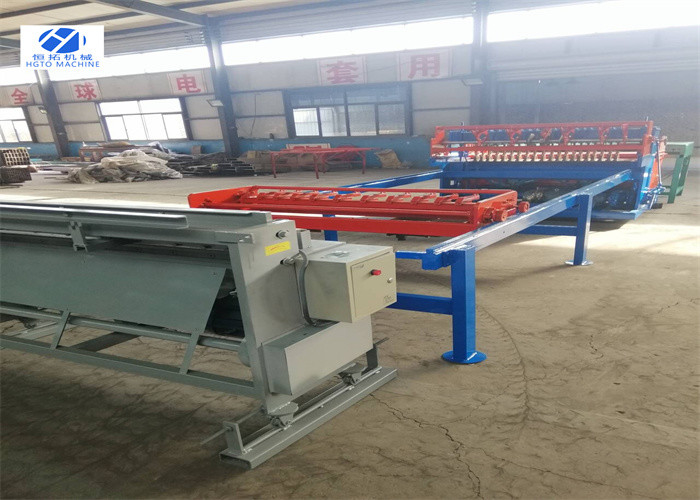

Machine detailes:
Picture of control cabinet:
Ready for delivery:
