Product Details:
|
| Name: | Underground Support Teel Mesh Welding PLC Control Welded Wire Mesh Making Machine | Mesh Size: | 50*50 Mm-200*200 Mm |
|---|---|---|---|
| Weld By Minutes: | 60-100 Times | Place Of Origin: | Hebei, China |
| Warranty: | 1year | Type: | Welding Wire Machine |
| Core Components: | PLC, MOTOR | Wire Diameter: | 5-12mm |
| Color: | Can Be Customized | Voltage: | 380V/50HZ/Customized |
| Control System: | PLC | Width: | 2500mm |
| High Light: | Anti Seismic Welded Wire Mesh Machine,50HZ Welded Wire Mesh Machine,Multiscene Welded Wire Mesh Roll Machine |
||
Underground Support Teel Mesh Welding PLC Control Welded Wire Mesh Making Machine
Reinforcing mesh welding line, also called BRC mesh welding machine, Construction mesh welding machine.
The reinforcement mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc. With more-than-20years experience in design and manufacture, our mesh welding machine is featured by high capacity, easy operation, and precise control.
NOTE: Our engineer can design a special specification machine according to your wire diameter, mesh hole size, and mesh width.
Advantages of automatic row welding machine (mesh welding machine) :
1. Special pneumatic electrode
Pneumatic electrodes for welding speed Max. 100 times/min, and adjustable welding pressure for the flat welded panel.
2. Automatic wire feeding car
Line wire feeding car for Pre-straighten and pre-cut wires, working faster and saving labor jobs.
3. Automatic pushing hopper
Cross-wire pushing hopper with European technology, working faster and continuously.
4. Automatic pulling mesh
Servo motor for mesh pulling working with Taiwan Gear rack, cross wire space more precise.
5. Welding transformer cooling
Cast water-cooling welding transformer, efficient cooling method, welding current can be adjusted by PLC.
6. The electrical system
The electrical system from the international famous brand for precise control and smooth working.
Wire straightening and cutting machine is to make pre-straighten and pre-cut cross wire use. So, the finished welded panel can be very flat and meet market demand.
Automatic row welding machine/mesh welding machine basic parameters:
Mesh width: 1 m, 1.2 m, 1.5 m, 2 m, 2.5 m, 3 m;
Mesh length: 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m (Customized according to customer needs)
Welding wire diameter: 2.2-4mm, 4-6.5mm, 6-8mm;
Welding aperture: 50x50mm, 100x100mm, 200x200mm or 250x250mm (adjustable);
Number of warp lines (solder joints) : 6, 8, 10, 12,14, 16, 18 (according to customer needs);
Power supply 380V 50HZ;
Welding speed 40-55 (row/min);
FAQ:
Q: Are you really the manufacture?
A: We are an original manufacturer, we are able to offer customized machine for you according to your request.
Q: Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang country, Hebei Province of China. You can easily travel to Beijing airport or Shijiazhuang airport, we will pick you up there.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have a professional RD team to design and research.
Q: Can your company send your engineers to my country for machine installation and worker training?
A: Yes, our engineers have been to more than 60 countries. They are of rich training experience.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 1 year since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply related certificate for you to reduce your customs clearance tax.

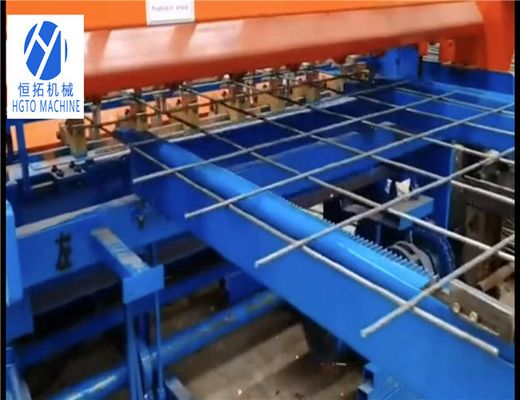

Machine detailes:
Picture of control cabinet:

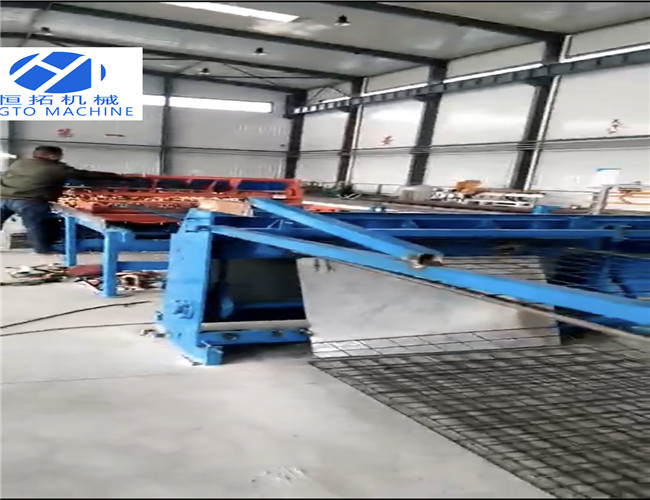

Workshop Image:
