Product Details:
|
| Name: | Galvanized Electric Welded Iron Wire Mesh Fence Panel Welding PLC Control Welded Wire Mesh Making Machine | Mesh Size: | 50*50 Mm-200*200 Mm |
|---|---|---|---|
| Weld By Minutes: | 60-100 Times | Place Of Origin: | Hebei,China |
| Warranty: | 1year | Type: | Welding Wire Machine |
| Core Components: | PLC, MOTOR | Wire Diameter: | 5-12mm |
| Color: | Can Be Customized | Voltage: | 380V/50HZ/Customized |
| Control System: | PLC | Width: | 2500mm |
| High Light: | Galvanized Welded Wire Mesh Machine,Hot Rolled Welded Wire Mesh Machine,Shockproof Welded Wire Mesh Panel Machine |
||
Galvanized Electric Welded Iron Wire Mesh Fence Panel Welding PLC Control Welded Wire Mesh Making Machine
Usage:
welding, all kinds of high-speed rail, tunnel support mesh, iron mine underground safety mesh, coal mine, underground support mesh.
Cross Wire Feeding Unit(pre-cut)
It is installed on the upper of the mesh grid set device. it consists of walking platform, cross wire stacking unit, wire distrbution device and wire feeding device.
The distribution device and the wire feeding are driven by pneumatic system under the operation by electrical control system.
Automatic cross wire feeding without the need for manual labor. it is designed for the cross wire is fed from pre-cut wire.
Welding System
Welded system is made up of the rack, welding transformer, pressurized cylinder, upper electrode combination, lower electrode combination, cross wire magnetic locator, lift mesh unit, line wire bracket combination, pneumatic system, water cooling system and others spare parts.
Welding materal:cold rolled wire, cold rolled round wire, hot rolled wire.
Mesh Pull Out System
It consists of blanking plate, gantry, chain link mesh netting machine and convey car(or roller guide), the flipper(stacker-turner)is optional part.
Max length of wire mesh: 6000mm. If the length of the reinforcing steel mesh is 12 meters or longer, it needs to be customized.
CNC Mesh Position Unit
Mesh position unit usage is feed forward the welding mesh, at the same time ensure the line wire spacing in need, which adjust cross line spacing according to the automatic setting.
CNC mesh position system can adjust the cross wire spacing automatically, and can save the data in the system, it is easy, convenient and accuracy to adjust the cross wire spacing.
Advantages of automatic row welding machine (mesh welding machine) :
1. The row welding machine is equipped with straightening cylinder, straightening row, and directly coil wire feeding, realizing automation, eliminating pre-straightening cutting and manual placement, saving time, equipment and labor.
2. The row welding machine has its own net cutting machine, which automatically cuts the net when the set length is reached, and automatically falls the net, without stopping the machine to improve efficiency.
3. The row welding machine can automatically produce once it is debugged, without stopping time, one worker can operate it.
Automatic row welding machine/mesh welding machine basic parameters:
Mesh width: 1 m, 1.2 m, 1.5 m, 2 m, 2.5 m, 3 m;
Mesh length: 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m (Customized according to customer needs)
Welding wire diameter: 2.2-4mm, 4-6.5mm, 6-8mm;
Welding aperture: 50x50mm, 100x100mm, 200x200mm or 250x250mm (adjustable);
Number of warp lines (solder joints) : 6, 8, 10, 12,14, 16, 18 (according to customer needs);
Power supply 380V 50HZ;
Welding speed 40-55 (row/min);

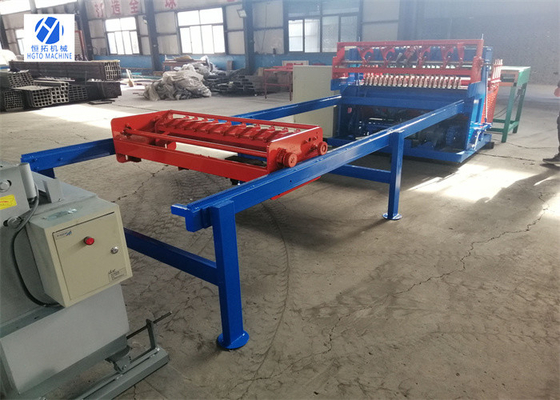

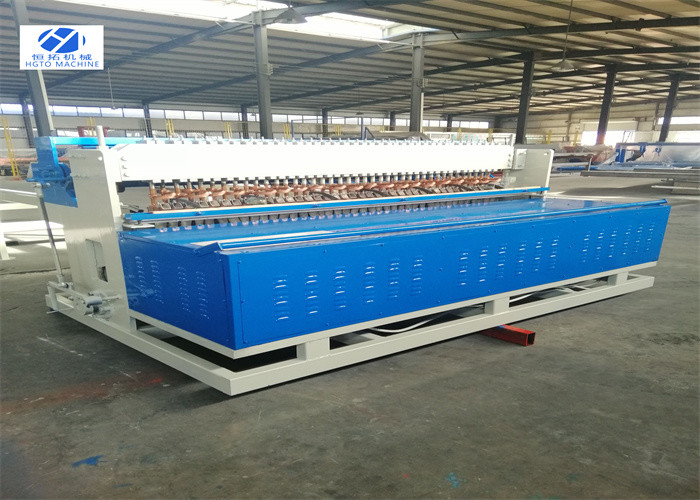

Machine detailes:
Picture of control cabinet:
Ready for delivery:
