Product Details:
|
| Name: | Large Prefabricated Board Members PLC Control Welded Wire Mesh Making Machine | Mesh Size: | 50*50 Mm-200*200 Mm |
|---|---|---|---|
| Weld By Minutes: | 60-100 Times | Place Of Origin: | Hebei,China |
| Warranty: | 1year | Type: | Welding Wire Machine |
| Core Components: | PLC,MOTOR | Wire Diameter: | 5-12mm |
| Color: | Can Be Customized | Voltage: | 380V/50HZ/Customized |
| Control System: | PLC | Width: | 2500mm |
| High Light: | Shockproof Welded Wire Mesh Machine,12mm Welded Wire Mesh Machine,Multiscene Welded Wire Mesh Making Machine |
||
Large Prefabricated Board Members PLC Control Welded Wire Mesh Making Machine
Usage:
Production of railway guardrail network, highway guardrail network bridge construction and other mesh welding.
Large prefabricated board member row welding machine/welding net machine:
1. The diameter of weldable steel bar is 3mm to 5mm
2. The width of the mesh is 3.3 meters and the length is 18 meters.
3. Welding speed 40--45 (row/min)
4. Welding transformer of row welder is air self-cooling.
5. The diameter wire is placed manually, and the weft wire is automatically dropped.
6. Holes of different sizes between weft and weft can appear on the same net.
7. The hole spacing of diameter wire is adjustable. The hole spacing of weft wire can be reached by input computer.
8. Adopt synchronous NUMERICAL control technology, welding time and sub-control welding are composed of PLC digital programming system
.
9. Characteristics of sub-control welding.
10. The shift can be divided into nine grades, expanding the scope of welding wire diameter.
11. The welding power is electric, using stepping motor hopper, braking motor to drive the trolley let-off, stepping motor to drive the trolley net.
12. Warp and weft threads are cut off by straightening machine in advance.
Performance and features:
(1) Motor power, large prefabricated board component welding net machine adopts synchronous control technology, sub-control welding and welding time are controlled by digital programming system, intelligent operation, rationalization, sub-welding characteristics.
(2) The welding power of the large prefabricated board component welding net machine is electric, and the stepping motor drives the trolley to pull the net. Warp and weft wires are straightened and cut by straightening and cutting machine.
The welding adopts new welding transformer to enlarge the scope of welding wire. Easy to operate,
FAQ:
Q: Are you really the manufacture?
A: We are an original manufacturer, we are able to offer customized machine for you according to your request.
Q: Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang country, Hebei Province of China. You can easily travel to Beijing airport or Shijiazhuang airport, we will pick you up there.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have a professional RD team to design and research.
Q: Can your company send your engineers to my country for machine installation and worker training?
A: Yes, our engineers have been to more than 60 countries. They are of rich training experience.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 1 year since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply related certificate for you to reduce your customs clearance tax.

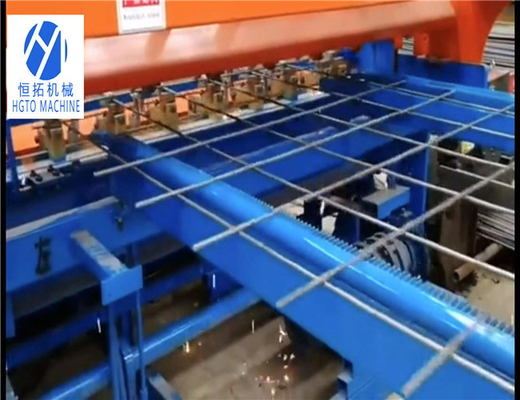

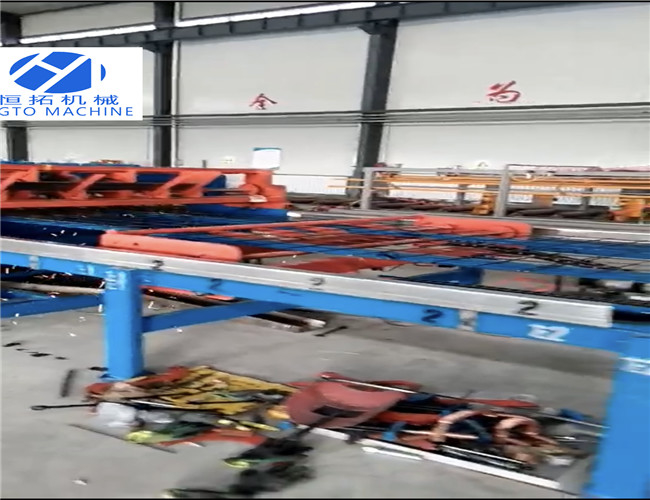

Machine detailes:
Picture of control cabinet:
Ready for delivery:
