Pneumatic Steel Welded Wire Mesh Machine Manufacturing ISO Pre Straightening

                                    Pneumatic Steel Mesh Welding PLC Control Welded Wire Mesh Making Machine

Usage:

welding, all kinds of high-speed rail, tunnel support mesh, iron mine underground safety mesh, coal mine, underground support mesh.

Main features:

Diameter wire for coil wire feeding, cross wire for pre-straightening cut, continuous production of mesh or coil.

Welding principle: resistance welding, with a pressure, sub welding characteristics, welding point instant welding, welding spot firm.

Automatic row welding machine/welding net machine welding net process:

1. Diameter wire directly coil wire feeding;

2. The diameter wire is straightened by the aligning cylinder and automatically welded to the welding spot. The cross wire needs to be straightened in advance and cut off, automatically falling, and automatically welded.

3. Net drawing adopts servo motor automatic cycle net drawing, fast net drawing, small diagonal error, smooth net surface.

4. Row welding machine has its own net cutting machine, the net cutting machine automatically cuts the net when the net reaches the set length, automatically falls the net, the net falls on the pallet car, after falling on a full car, the worker can push away, the machine does not stop working!

5. Row welding machine can automatically produce after debugging, no stop time, one worker can operate.

Advantages of automatic row welding machine (mesh welding machine) :

1. The row welding machine is equipped with straightening cylinder, straightening row, and directly coil wire feeding, realizing automation, eliminating pre-straightening cutting and manual placement, saving time, equipment and labor.

2. The row welding machine has its own net cutting machine, which automatically cuts the net when the set length is reached, and automatically falls the net, without stopping the machine to improve efficiency.

3. The row welding machine can automatically produce once it is debugged, without stopping time, one worker can operate it.

Automatic row welding machine/mesh welding machine basic parameters:

Mesh width: 1 m, 1.2 m, 1.5 m, 2 m, 2.5 m, 3 m;

Mesh length: 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m (Customized according to customer needs)

Welding wire diameter: 2.2-4mm, 4-6.5mm, 6-8mm;

Welding aperture: 50x50mm, 100x100mm, 200x200mm or 250x250mm (adjustable);

Number of warp lines (solder joints) : 6, 8, 10, 12,14, 16, 18 (according to customer needs);

Power supply 380V 50HZ;

Welding speed 40-55 (row/min);

FAQ:

Q: Are you really the manufacture?

A: We are an original manufacturer, we are able to offer customized machine for you according to your request.

Q:Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang country, Hebei Province of China. You can easily travel to Beijing airport or Shijiazhuang airport, we will pick you up there.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have a professional RD team to design and research.

Q: Can your company send your engineers to my country for machine installation and worker training?
A: Yes, our engineers have been to more than 60 countries. They are of rich training experience.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 1 year since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply related certificate for you to reduce your customs clearance tax.

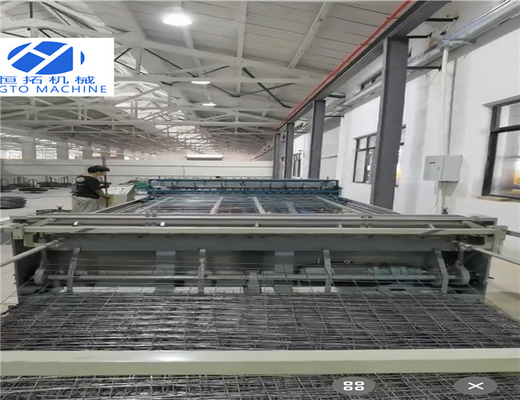

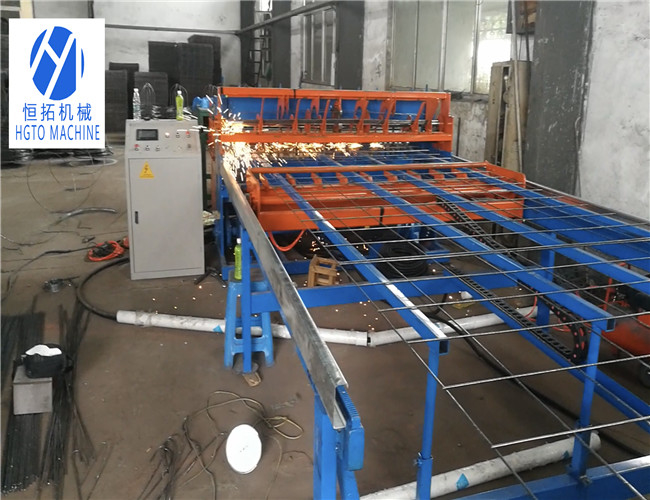

Machine detailes:

Picture of control cabinet:

Ready for delivery:
