70r/Min Weld Mesh Manufacturing Machine , Shockproof Motor Fence Mesh Welding Machine

               Construction Net Row Welding PLC Control Welded Wire Mesh Making Machine

Usage:

Construction network, bridge network, high-speed network, fence network, floor pouring top network, gas plate network, prefabricated board member network, shule plate network, floor heating network, seedbed network, flower chamber network and other welding

Advantages of automatic construction net row welding machine/welding net machine:

1. The row welding machine is equipped with a straightening cylinder, which directly coils the wire into the material to realize automation, eliminating the pre-straightening cutting and manual placement, saving time, equipment and labor.

2. The grid welding machine has its own net cutting machine, which automatically cuts the net when it reaches the set length. The machine does not stop working, and the efficiency is improved.

3. The row welding machine can automatically produce once it is debugged, without stopping time, one worker can operate it.

4. The main frame of the row welding machine is welded with thick steel plate and I-shaped steel, so that the main structure is firm and compact.

Automatic construction net row welding machine/welding net machine:

① Welding width: 1.2--3 meters

② Welding diameter: 2.2-5mm

③ Longitudinal bar spacing: 50-200mm adjustable

④ Transverse bar spacing: 50-75-100-150-200mm adjustable

⑤ Welding speed: 60-70 rows/min

⑥ Weight of equipment: about 3.5 tons

Auxiliary equipment:

net shearing machine (including unloading rack, trawl trolley), straightening cylinder, straightening row, supporting wire, straightening cutting machine (price is calculated separately);

Automatic construction mesh row welding machine/mesh welding machine mesh welding process:

1. Diameter wire directly coil wire feeding;

2. The diameter wire is straightened through the straightening cylinder and the straightening row, and then welded to the welding spot. The cross wire shall be straightened and cut in advance, and the wire will fall automatically.

3. Net drawing adopts servo motor automatic cycle net drawing, fast net drawing and smooth net surface.

4. Row welding machine has its own net cutting machine, the net cutting machine automatically cuts the net when the net reaches the set length, automatically falls the net, the net falls on the pallet car, after falling on a full car, the worker can push away, the machine does not stop working!

5. Row welding machine can be automatically produced once it is debugged, and it can be operated by one worker.

FAQ:

Q: Are you really the manufacture?

A: We are an original manufacturer, we are able to offer customized machine for you according to your request.

Q:Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang country, Hebei Province of China. You can easily travel to Beijing airport or Shijiazhuang airport, we will pick you up there.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have a professional RD team to design and research.

Q: Can your company send your engineers to my country for machine installation and worker training?
A: Yes, our engineers have been to more than 60 countries. They are of rich training experience.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 1 year since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply related certificate for you to reduce your customs clearance tax.

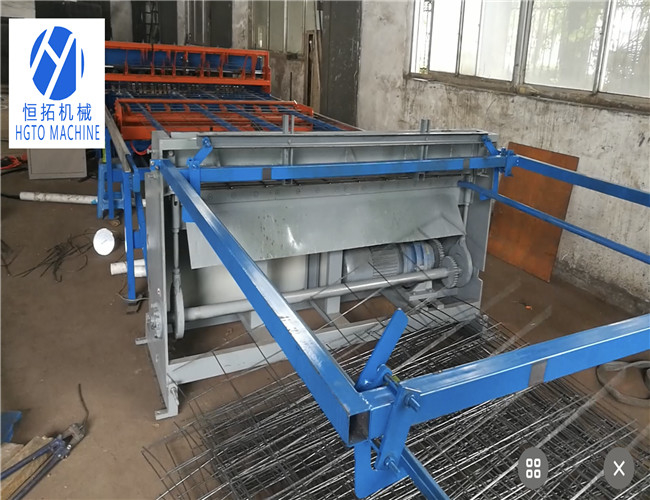

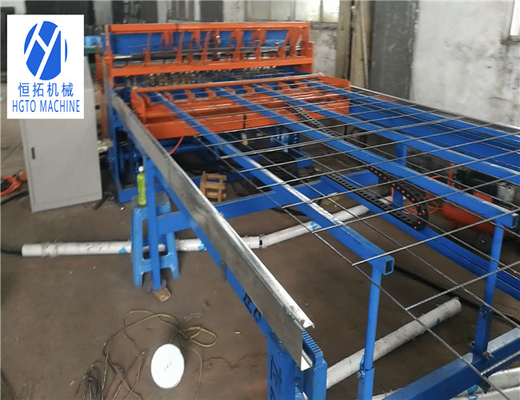

Machine detailes:

Picture of control cabinet:

Ready for delivery:

Factory Picture:
