Product Details:
|
| Brand: | 3kw , 380v , CS-A Barbed Wire Mesh Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Wire Diameter: | 1.6-3.0 | Distance: | 3-6inch |
| Output: | 740-1485m/h | Warranty: | 2 Years |
| Surface Treatment: | Galvanized, Standard Galvanized Or Heavy Galvanized,PVC Coated Or Galvanized | Razor Type: | Single Twisted And Double Twisted |
| Application: | Produce Barbed Wire | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | Galvanized Barbed Wire Machine,380v Barbed Wire Machine,Anticorrosive Chain Link Wire Machine |
||
3kw , 380v , CS-A Barbed Wire Mesh Making Machine
Barbed wire machines are divided into: single twisted barbed wire machine, normal twisted barbed wire machine, and reverse twisted barbed wire machine.
Surface treatment:
Electro galvanized wire, hot-dipped galvanized wire, pvc coated wire..
Application:
Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function,national defense, animal husbandry, playground fence,agriculture,expressway, etc.
We always keep the best professional design and manufacturing technology in this barbed wire machines with over 30 years experience.
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |
Attention: we can design the machine according to your wire diameter,wire raw materials and wire barbed.
Advance Technologies:
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button switches and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.
FAQ:
Q: What is your payment terms?
A: Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging.
Q: How long is your delivery time?
A:It will be 25- 30 days after received your deposit.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. your customs clearance will be no problem..
Q: Why choose us?
A. We have an inspection team to check the products at all stages of the manufacturing process-raw material100% inspection in assembly line to achieve the required quality levels.Our guarantee time is 2 years since the machine was installed in your factory.
Language Spoken:English,Chinese,Spanish

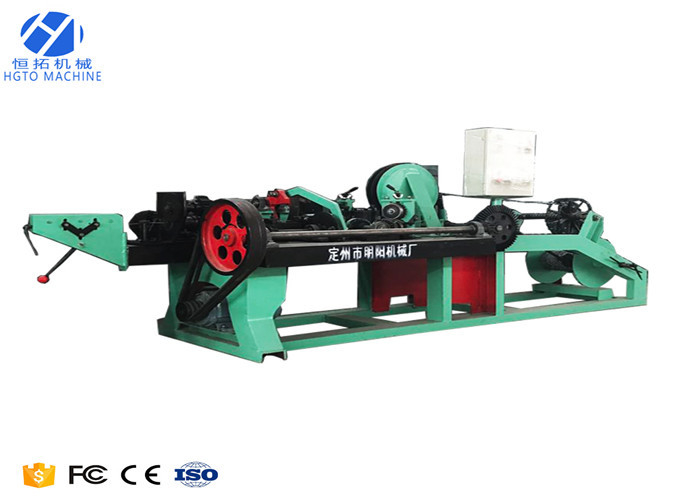

Machine Pictures:
