Product Details:
|
| Raw Material: | 70mm , 3m , For Farmland , Plc Hexagonal Wire Mesh Machine | Mesh Width: | 2500/3000/4000 |
|---|---|---|---|
| Type: | HGTO | Warranty: | 2 Years |
| Wire Diameter: | 1.0-2.0mm | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized According To Customer Requirements | Voltage: | 220V/380V/415V/440V |
| Control System: | PLC+touch Screen | Mesh Type: | Rolling Mesh |
| High Light: | Hexagonal Wire Netting Machine,ISO Hexagonal Wire Netting Machine,PLC Wire Mesh Machines |
||
70mm , 3m , For Farmland , Plc Hexagonal Wire Mesh Machine
Usage of straight and reverse hexagonal wire mesh
(a) used for husbandry, for example, feeding chicken.
(b) used in petroleum, construction, farming, chemical industry, and pipes parcel wire mesh.
(c) used for fencing, residential and landscape protection, etc.
Technical Parameters:
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| Remark:Can manufacture customized type | ||||||
Our Advantages
1. Grid counter alarm to stop machine (when wire/ mesh broken, or preset numbers into zero). International famous brand components: Best domestic
2. Tidy mesh with/ without reinforcement wire between any holes.
3. Servo motor to drive weaving process, more precise, adjustable speed, running fast, less noise.
4. Automatically wind up mesh into rolls.
5. Auto-stop machine function when the wire is broken.
6. Inching / Single-step control button, easy to operate.
7. Automatically central lubrication system to reduce machine damages;
8. Can weave 2-4 scopes of the net with the same machine.
The strength of our factory:
FAQ
Q: Where is your factory located?
A: Our factory is located in Ding zhou city and shijiazhuang,Hebei provinc of China. The nearest airport is Beijing airport capital or Shijianzhuang airport. We can picky you up from shijianzhang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30 years. We have our own technology develop department and testing department.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. And we can supply ISO report etc, your customs clearance will be no problem
Q: How many machines can be load in container?
A: One 40 feet container can load two sets machine.
Q: Will you help us installing the machine after we get it?
A: We can send installing video and instruction manual. Our engineer can also go to your factory to install the machine and train your labor.

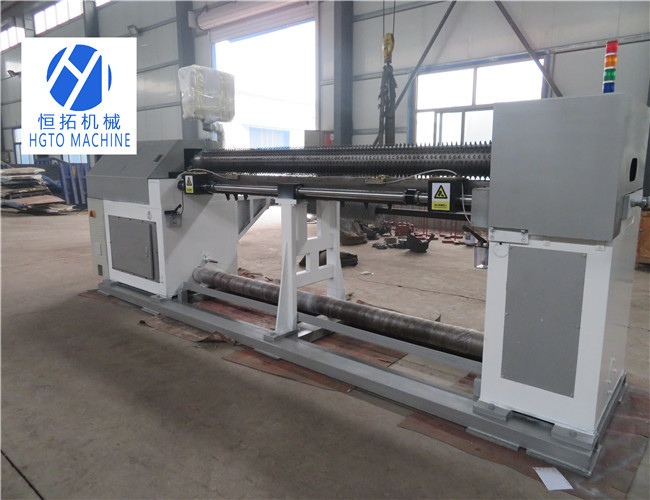

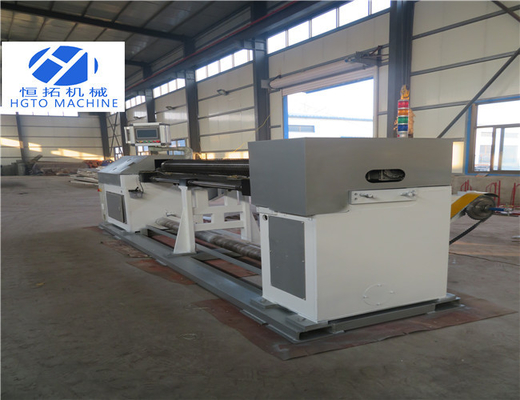

Machine image:
Finished Product:
