Product Details:
|
| Name: | 60mm , 4m , Children Playground Use , Reverse Plc Hexagonal Wire Mesh Machine | Weight: | 4-5.7 T |
|---|---|---|---|
| Mesh Width: | Can Be Customized | Brand: | HGTO |
| Motor: | 4.4kw+7.5kw*2 | Warranty: | 2 Years |
| Type: | Competitive Price | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized | Voltage: | 220V/380V/415V/440V/customized |
| Control System: | PLC+touch Screen | ||
| High Light: | Shockproof Hexagonal Wire Mesh Machine,220V Hexagonal Wire Mesh Machine,Reverse Automatic Welded Wire Mesh Machine |
||
60mm , 4m , Children Playground Use ,Reverse Plc Hexagonal Wire Mesh Machine
Advantages of PLC Hexagonal Wire Mesh Machine:
1:Fault protection,overload protection,motor if overload or the device will automatically stop and alarm if the power is suddenly increased,and the screen will be displayed indicate the fault location without damage to the mechanical structure.
2:Power off protection function ,The equipment in the process of running suddnly power off,The system will run for a short time to record the location of the power outage,and then the work can be carried out smoothly without adjustment when the power is switched on.
3:Location memory function,our device can be in any action link make the device stop working losing position,which is convenient for start-stop operation.
4:Reset recovery function,can be used whne the device is confused.with this function,we wrote worke to restorefactory settings in the system.as long as the device is adjusted to the specified position,One-key recovery,Easy to adjust.
Machine Description:
This machine is also called hexagonal wire netting machine, chicken wire mesh netting machine.Hexagonal wire mesh is widely used in fences of farmland and grazing land, chicken husbandry,reinforced ribs of building walls and other nets for separation.
Technical Parameter:
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
10-13kw | 4-5.7 |
| Remark:Can manufacture customized type | ||||||

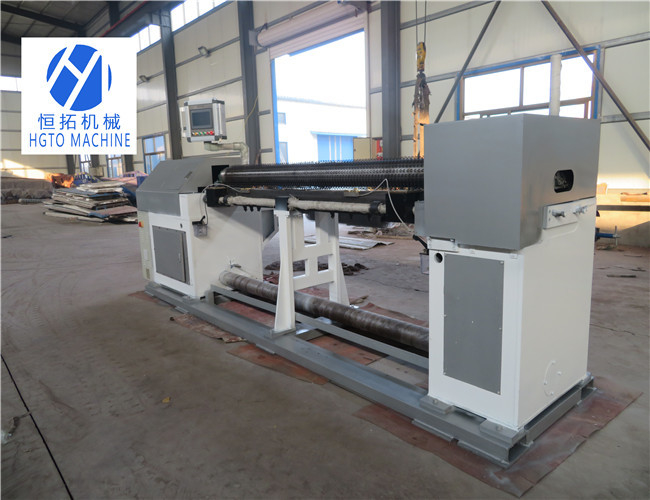

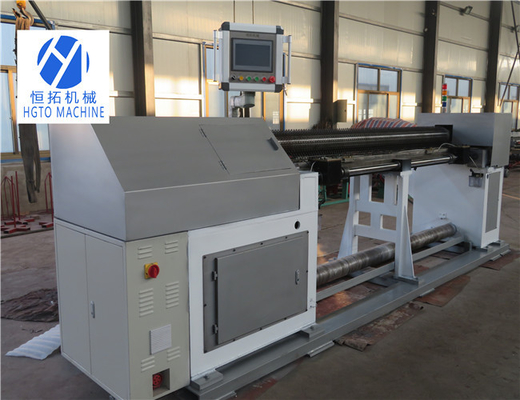

Machine Image:
Finished Product:
The strength of our factory:
