Product Details:
|
| Name: | Big Mesh Size Plc Reverse Hexagonal Steel Wire Mesh Machine | Weight: | 4-5.7 T |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000 | Type: | HGTO |
| Motor: | 10-13kw | Mesh Size: | Can Be Customized According To Customer Requirements |
| Wire Diameter: | 0.38-2.5mm | Type: | Fully Automatic |
| Application: | For Wire Mesh | Mesh Width: | 4000mm |
| Control System: | PLC+touch Screen | Material: | Iron Wire Or Pvc Wire |
| High Light: | 10kw Hexagonal Wire Mesh Making Machine,13kw Hexagonal Wire Mesh Making Machine,PLC Steel Mesh Machine |
||
Big Mesh Size PlC Reverse Hexagonal Steel Wire Mesh Machine
Usage of straight and reverse hexagonal wire mesh:
(a) used for husbandry, for example, feeding chicken.
(b) used in petroleum, construction, farming, chemical industry, and pipes parcel wire mesh.
(c) used for fencing, residential and landscape protection, etc.
Technical Parameters
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| Remark:Can manufacture customized type | ||||||

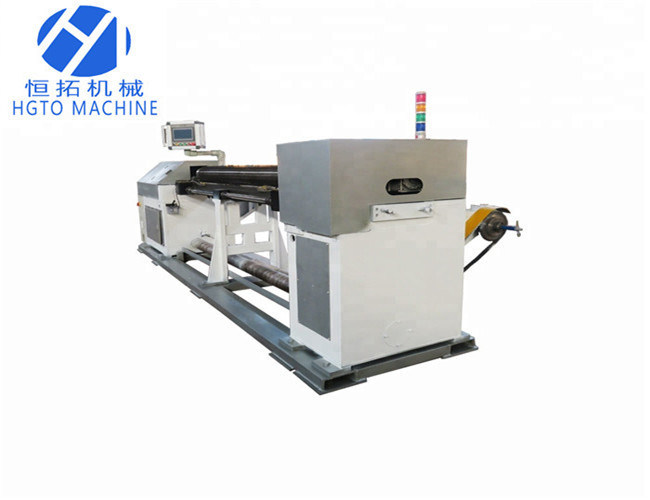

Machine Image:
Finished Product:
The strength of our factory:
Our company Is a integrates research and development, production and sales as one of the manufacturers. Since its inception, we insist on the principle of “Quality to service, Customers are first”.
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine,weld wire mesh machine,nail making machine and so on.
