Product Details:
|
| Name: | Agricultural Construction Use , 13mm , Cnc(Plc Control) Reverse Hexagonal Wire Mesh Netting Machine | Weight: | 4-5.7 T |
|---|---|---|---|
| Brand: | HGTO | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 2 Years | Wire Diameter: | 0.38-2.5mm |
| Color: | Can Be Customized | Type: | Fully Automatic |
| Voltage: | 380V, 50Hz Or According To Client's Voltage | Control System: | PLC+touch Screen |
| High Light: | CNC Automatic Wire Netting Machine,50Hz Automatic Wire Netting Machine,Agricultural Wire Mesh Machinery |
||
Agricultural Construction Use , 13mm , Cnc(Plc Control) Reverse Hexagonal Wire Mesh Netting Machine
Technical Parameters
| Type |
Mesh Size (mm) |
Mesh width (mm) |
Wire diameter (mm) |
Machine dimension(m) | Motor(kw) | Weight(T) | |||
|
HGTO-2500
|
16 | 2500/3000/4000 | 0.38-0.7 | (2.5-4.0)*1.7*1.6 | 3 | 4-5.7 | |||
| 21-22 | 0.40-0.7 | ||||||||
| 25 | 0.45-1.1 | ||||||||
| 30-32 | 0.50-1.2 | ||||||||
| 40-45 | 0.50-1.4 | ||||||||
| 55-57 | 0.6-2.0 | ||||||||
| 60-65 | 1.0-2.0 | ||||||||
| Remark: Can manufacture customized type | |||||||||
Our Advantages
1. International famous brand components: Best domestic
2. Servo motor to drive weaving process, more precise, adjustable speed, running fast, less noise.
3. Inching / Single-step control button, easy to operate.
4. Grid counter + alarm to stop machine (when wire/ mesh broken, or preset numbers into zero).
5. Automatically wind up mesh into rolls.
6. Tidy mesh with/ without reinforcement wire between any holes.
7. Automatically central lubrication system to reduce machine damages;
8. Can weave 2-4 scopes of the net with the same machine.
9. Auto-stop machine function when the wire is broken.

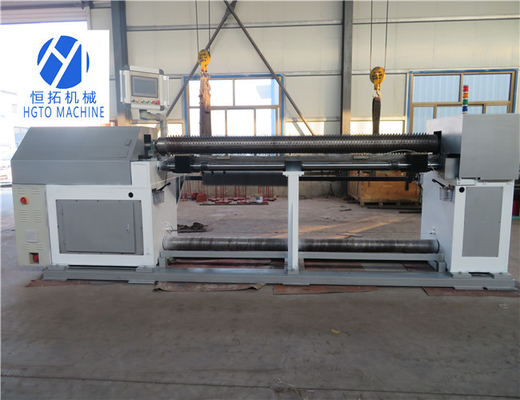

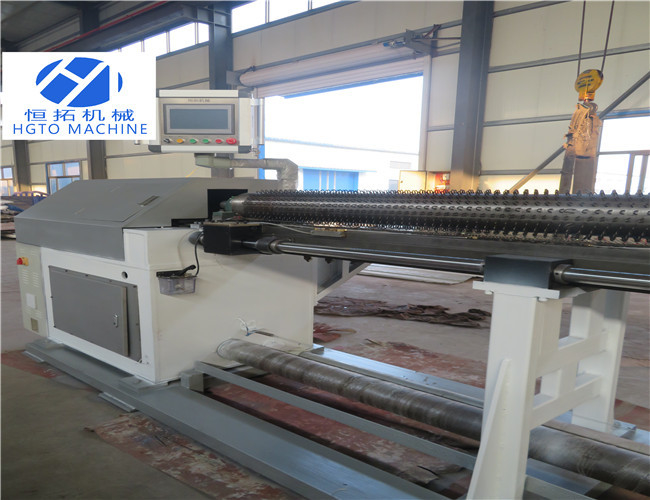

Machine Image:
Finished Product:
Company Profile:
Hebei hengtuo mechanical equipment Co., Ltd is a professional manufacture wire mesh machine and metalware's company.Its predecessor is Dingzhou Mingyang wire mesh machine factory.Hebei hengtuo mechanical equipment Co., Ltd mainly does research and development,production and sales of wire mesh machines,
The strength of our factory:
FAQ
Q: Where is your factory located?
A: Our factory is located in Ding zhou city ,Hebei provinc of China. The nearest airport is Beijing airport capital or Shijianzhuang airport .We can picky you up from shijianzhang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 34 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 40 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. And we can supply ISO report etc, your customs clearance will be no problem
