Product Details:
|
| Name: | Customized Width 1.6mm Gabion Wire Mesh Machine Ce Certification | Product Name: | Gabion Machine For Making Gabion Box |
|---|---|---|---|
| Warranty Of Core Components: | 2 Years | Width(mm): | Can Be Customized |
| Wire Diameter: | 1.6-3.2mm | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Min Open: | 30mm-250mm |
| High Light: | customized width gabion wire mesh machine,1.6mm gabion wire mesh machine,1.6mm gabion machine |
||
Application :
gabion wire mesh machine, also horizontal hexagonal wire mesh machine or gabion basket machine, is to produce the hexagonal wire mesh for reinforcement stone box use.
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advantage of our Horizontal gabion wire mesh machine:
1. The new machine adopts horizontal type structure,Running smoother
2. Its easy to operate this machine,just need 1-2 workers is ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. Simple installation,No special technology needed
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.

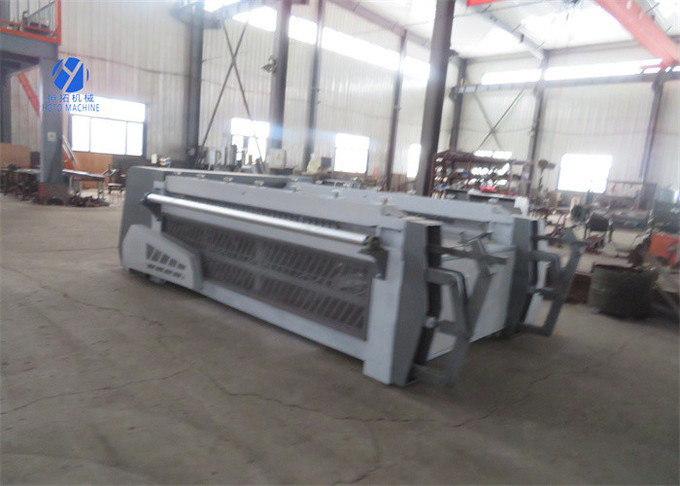

Factory Picture:
