Product Details:
|
| Name: | 140*160MM , Stockyard Use ,Iron Wire , Horizontal Type Hexagonal Wire Mesh Weaving Machine | Key Selling Points: | High Quality |
|---|---|---|---|
| Product Name: | Gabion Machine For Making Gabion Box | Warranty Of Core Components: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width(mm): | Can Be Customized |
| Wire Diameter: | 1.6-3.2mm | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Min Open: | 30mm-250mm |
| High Light: | Iron Gabion Wire Mesh Machine,Hexagonal Gabion Wire Mesh Machine,Stockyard Hexagonal Wire Mesh Machine |
||
1: used in petroleum, construction, farming, chemicalindustry, heating pipes and other pipe parcel wire mesh;
2: used for fences of residential and landscape protection, etc.
3: used to make stone wire mesh cages to protect seawall, hillside, bridge, reservoirs, and other civil engineering
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advantage of our Horizontal gabion wire mesh machine:
1. The new machine adopts horizontal type structure,Running smoother
2. Its easy to operate this machine ,just need 1-2 workers is ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. Simple installation, No special technology needed
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.
FAQ:
Q: Are you really factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry more than 30 years. We can offer you good quality machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in ding zhou and shijiazhunag county, hebei Province, China.All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, It can be customized according to our customer’s requirments.
Q: What's the price of your machine ?
A: Please tell me wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging.
Q: How long is your delivery time?
A:It will be 25- 30 days after received your deposit.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. your customs clearance will be no problem..
Q: Why choose us?
A. We have an inspection team to check the products at all stages of the manufacturing process-raw material100% inspection in assembly line to achieve the required quality levels.Our guarantee time is 2 years since the machine was installed in your factory.
Company Brief:
Hebei Hengtuo machinery equipment Is a integrates research and development, production and sales as one of the manufacturers. Since its inception, we insist on the principle of “Quality to service, Customers are first”.
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine,weld wire mesh machine,nail making machine and so on.
All departments work together to make sure all the machines and products good quality and supply good after-sales service. Due to the joint efforts of all staff, our products are exported to many countries, and gain good reputation and long cooperation from domestic and overseas.

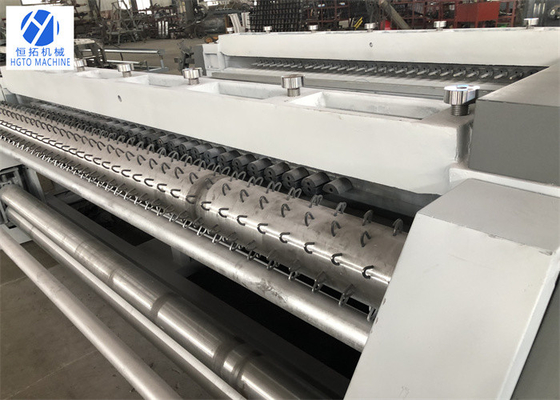

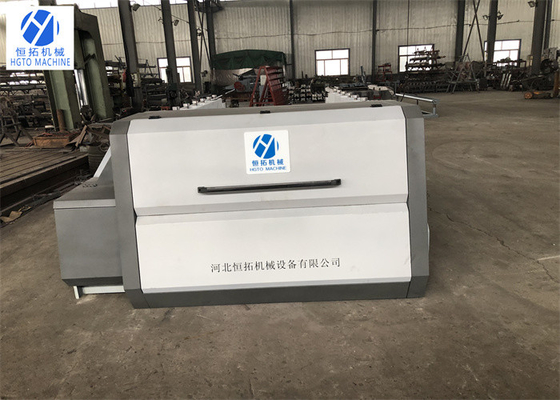

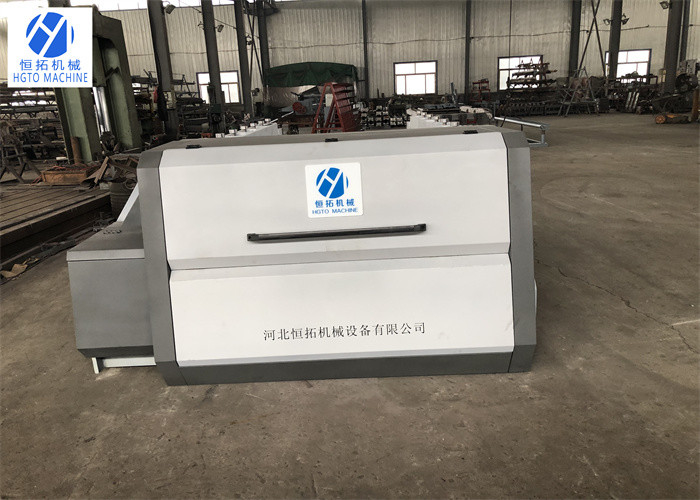

Main machine picture:
Company sales research and development department:
