Product Details:
|
| Name: | 80mm Heavy Duty Hexagonal Wire Gabion Mesh Making Machine | SPEED: | 50times/min, 200m/h |
|---|---|---|---|
| Weight: | 18.5t | Mesh Size: | Can Be Set According To Customer Requirements |
| Mesh Width: | Can Be Set According To Customer Requirements | Wire Diameter: | 4.0mm |
| Wire Diameter: | 1.6-3.5mm | Warranty: | 2 Years |
| Color: | Requirement | Application: | Gabion Box Weaving |
| Mesh Width: | Max. 4500mm | Speed: | 80-200m/h |
| High Light: | 80mm Gabion Making Machine,Heavy Duty Gabion Making Machine,Rustproof Hexagonal Wire Machine |
||
80mm Heavy Duty Hexagonal Wire Gabion Mesh Making Machine
Detailed Product Description:
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer request.
Specification of heavy type gabion wire mesh machine:
Mesh size | Width | Wire diamater | Spindle Speed | Power of motor | Theoretic output |
(mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) |
60X80 | 2300 | 1.6-3.0 | 25 | 11 | 165 |
80X100 | 1.6-3.0 | 25 | 195 | ||
100X120 | 1.6-3.2 | 25 | 225 | ||
120X150 | 1.6-3.5 | 20 | 255 | ||
60X80 | 1.6-3.0 | 25 | 15 | 165 | |
80X100 | 1.6-3.2 | 25 | 195 | ||
100X120 | 1.6-3.5 | 25 | 225 | ||
120X150 | 1.6-3.8 | 20 | 255 | ||
60X80 | 1.6-2.8 | 25 | 22 | 165 | |
80X100 | 1.6-3.0 | 25 | 195 | ||
100X120 | 1.6-3.5 | 25 | 225 | ||
120X150 | 1.6-3.8 | 20 | 255 |
Advantage of heavy type gabion wire mesh machine:
1:drive mechanism is used to replace the gear swing arm mechanism.High speed, low vibration, high efficiency
2:Equipment control system adopts touch screen and PLC control, simple operation, man-machine dialogue interface.
3:The use of concentric Spindle rod greatly reduces the moment of inertia of the equipment and reduces the noise.
4:Equipment running time: 50 times /min, 200 meters /h.
5:Power: 380V, total power: 22KW, total weight: 18.5t
6:Matching automatic spring machine.
FAQ:
Q: What’s the machine price?
A: Please tell me your wire diameter, mesh hole size and mesh width
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: Can I make different mesh size on one machine?
A: The mesh size must be fixed. The mesh width can be adjusted.
Q: What’s your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.
Q: What’s the production capacity of this machine?
A: 200m/hour
Q: Can I make several mesh rolls one time?
A: Yes. It is no problem on this machine.

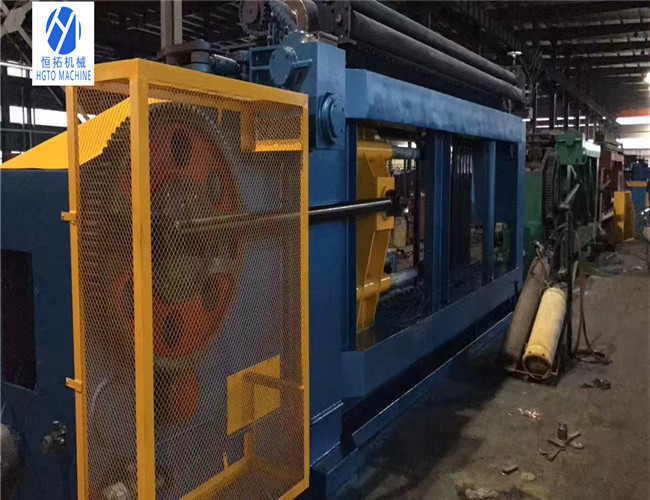

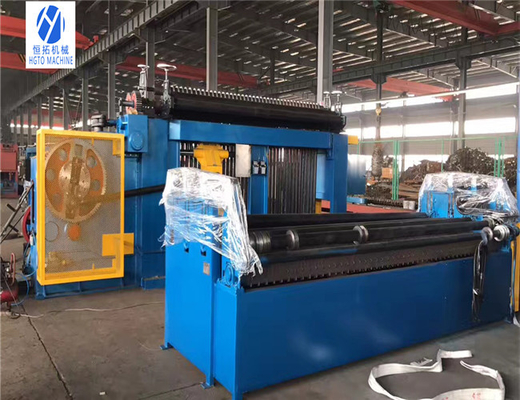

Machine Pictures:
