Product Details:
|
| Name: | High Speed Automatic Steel Wire Drawing Machine | Outlet Diameter: | 0.8-2mm |
|---|---|---|---|
| Core Components: | Gearbox, Bearing, Motor, PLC | Power: | 18.5-30kw |
| Weight: | 2000, Heavy Duty | Drawing Material: | Steel Wire,ss Wire |
| Main Structure: | 16mm Steel Plate | Inlet Diameter: | 6.5-8mm |
| Video Outgoing-inspection:: | Provided | Warranty Of Core Components: | 1 Year |
| Service: | ODM Service | Motor: | Inverted Motor |
| High Light: | inverted pulley wire drawing machine,30kw pulley wire drawing machine,inverted motor steel drawing machine |
||
High speed automatic steel wire drawing machine
1. Product Introduction
Wire drawing machine is to reduce steel wire from big diameter to small diameter. We have different types of wire drawing machines to make different wire diameters:
-Horizontal wire drawing machine (10mm to 5mm);
-Straight wire drawing machine (6.5mm to 1.8mm);
-Pulley wire drawing machine (6.5mm to 2mm);
-Water tank drawing machine(2mm to 0.7mm).
The drawn wire is extensively used to produce especially steel wire mesh-like welded wire mesh, chain link fence, hexagonal wire mesh, nails, etc.
2. Working flows and automation
|
Straight line Wire drawing machine
|
|||
|
Capstan diameter
|
560mm
|
||
|
Capstan numbers
|
11
|
||
|
Inlet wire diameter
|
Φ8.0mm
|
||
|
Outlet wire diameter
|
Φ2.0mm-Φ6.0mm
|
||
|
Tensile strength
|
≤600mpa
|
||
|
Total compressibility
|
90.53%
|
||
|
Average compressibility
|
25.52%
|
||
|
Max. Speed
|
12 m/s
|
||
|
Power
|
22 KW*11 (Frequency conversion motor )+22KW*11(inverter)
|
||
|
Mold size
|
Φ40mm×25
|
||
|
Block type
|
Vertical ,tilted
|
||
|
Take-up wire
|
Elephant trunk type take-up system
|
||
|
Tension frame
|
Internal tension frame.
|
||
|
Main frame
|
Welding of steel plate and square pipe.
|
||
|
Stop brake
|
Pneumatic brake
|
||
|
Vacuuming design
|
Reserve suction hole
|
||
|
Lighting
|
Each stand with separate lighting.
|
||
|
PLC
|
Siemens
|
||
FAQ:
Q: What’s the machine price?
A: Please tell me your require.
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: Can I make different mesh size on one machine?
A: The mesh size must be fixed. The mesh width can be adjusted.
Q: How many workers are needed to operate the line?
A: 1 worker.
Q: Can I make several mesh rolls one time?
A: Yes. It is no problem on this machine.
Q: What’s your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.

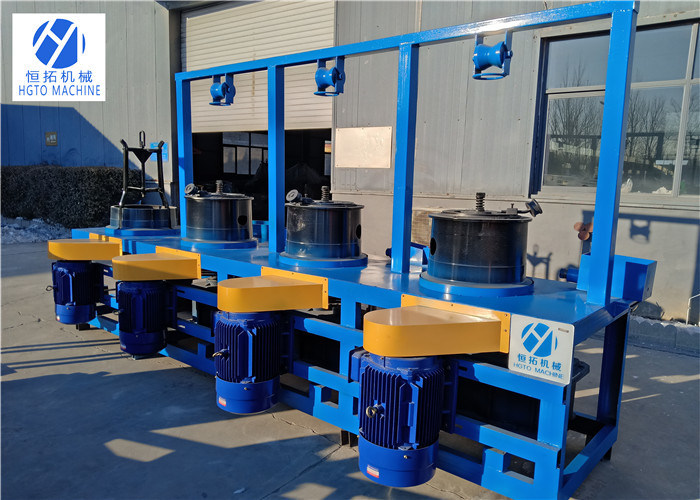

Machine Picture:
