Product Details:
|
| Name: | Large Continuous Pot Wire Drawing Machine | Outlet Diameter: | 0.8-2mm |
|---|---|---|---|
| Machinery Test Report: | Provided | Core Components: | Gearbox, Bearing, Motor, PLC |
| Power: | 18.5-30kw | Weight: | 2000, Heavy Duty |
| Key Selling Points: | Competitive Price | Drawing Material: | Steel Wire, Ss Wire |
| Quality: | Top Grade | Main Structure: | 16mm Steel Plate |
| Inlet Diameter: | 6.5-8mm | Video Outgoing-inspection:: | Provided |
| Warranty Of Core Components: | 1 Year | Service: | ODM Service |
| Motor: | Inverted Motor | ||
| High Light: | Shockproof Aluminum Wire Drawing Machine,30kw Aluminum Wire Drawing Machine,ODM Electrical Wire Drawing Equipment |
||
Large Continuous Pot Wire Drawing Machine
Large even pot wire drawing machine: suitable for drawing iron wire, copper wire, aluminum wire, the wire is mainly used for netting, construction, galvanized, etc., can also supply water tank wire drawing.
Products are divided into two cans, three cans, four cans, five cans. Can also be customized according to user demand processing. This product is energy-saving and can save a lot of electricity for users.
Main technical parameters of large continuous pot wire drawing machine:
1. Drum diameter : (mm) 550-600
2. Incoming line : (mm) 6.5
3. Outgoing line : (mm) 1.6
4. Linear speed : (m/min) 50-120
5. Motor attack rate : (kw) 5.5, 7.5, 10, 11, 15
6. Reducer applicable bearing: 30315 (2 plates) 7312 (2 plates) 7310 (2 plates) 314 Other 7215 (2 plates) 204 (2 plates)
We can design a solution according to your input and output wire diameter; or ribbed wire

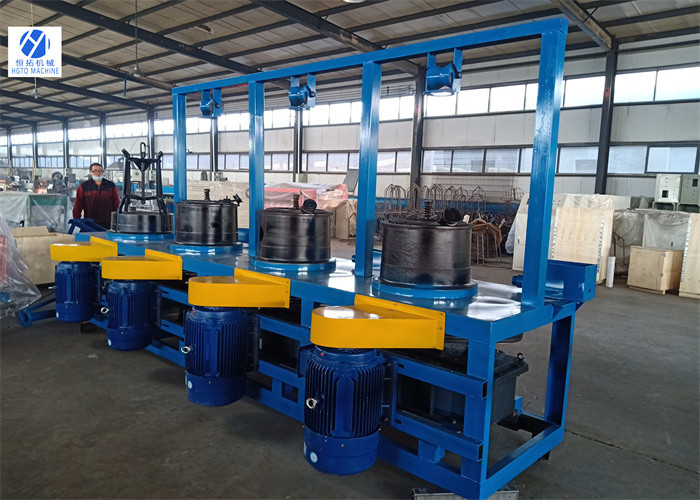

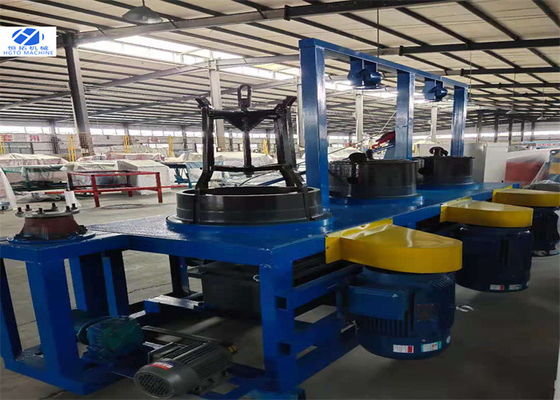

Machine Picture:
