Product Details:
|
| Name: | PLC Automatic High Speed Hexagonal Wire Mesh Machine | Key Selling Points: | High Quality |
|---|---|---|---|
| Product Name: | Gabion Machine For Making Gabion Box | Warranty Of Core Components: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width(mm): | Can Be Customized |
| Wire Diameter: | 1.6-3.2mm | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Min Open: | 30mm-250mm |
| High Light: | 30mm gabion wire mesh machine,plc gabion wire mesh machine,plc gabion mesh machine |
||
Our gabion is a rectangular wire mesh box made from double twisted hexagonal mesh and weldmesh of steel wire, additionally reinforced by selvedges of heavier wire running along the edges and by transverse diaphragms. These mesh boxes are delivered to site flat-packed, whereupon they are assembled, lifted into position, and filled with durable rock. The modular nature of the gabion means that it can be used in a vast array of applications and configurations. Woven units can also be easily amended on site and shaped to suit project requirements.
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Material can weave: galvanized wire, stainless steel wire, PVC coated wire, brass wire and so on.
Usage: used as fence to feeding chickens and other animals, residential windows and garden fence, chemical fiber industry, wrap pipes, boilers,warm, antifreeze, civil construction.

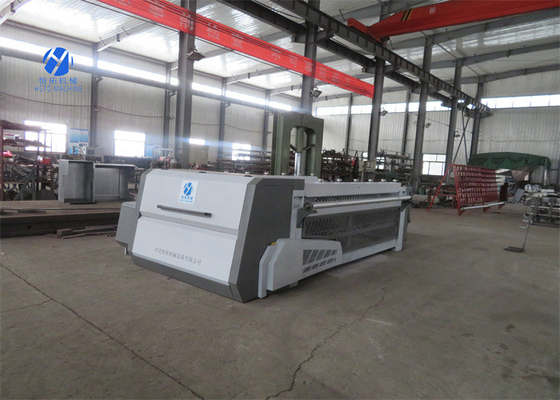

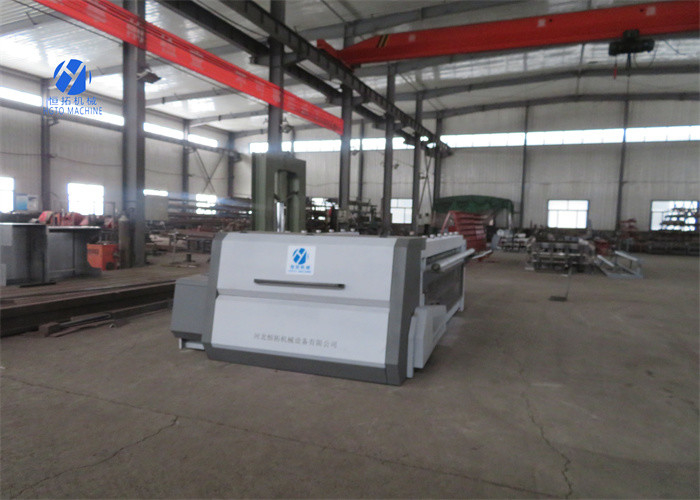

Main machine picture:
Finished mesh Picture:
Factory Picture:
