Product Details:
|
| Name: | PLC Control Gabion Box Wire Mesh Knitting Machine | Key Selling Points: | High Quality |
|---|---|---|---|
| Product Name: | Gabion Machine For Making Gabion Box | Warranty Of Core Components: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width(mm): | Can Be Customized |
| Wire Diameter: | 1.6-3.2mm | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Min Open: | 30mm-250mm |
| High Light: | ce knitting gabion wire mesh machine,plc control gabion wire mesh machine,plc control gabion making machine |
||
Application :
Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.
Gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length canbe 50-55 mm.
Our machine has several models for different sizes of meshes and the maximum netting width is up to 5500mm. We can accept any special orders from clients.
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||

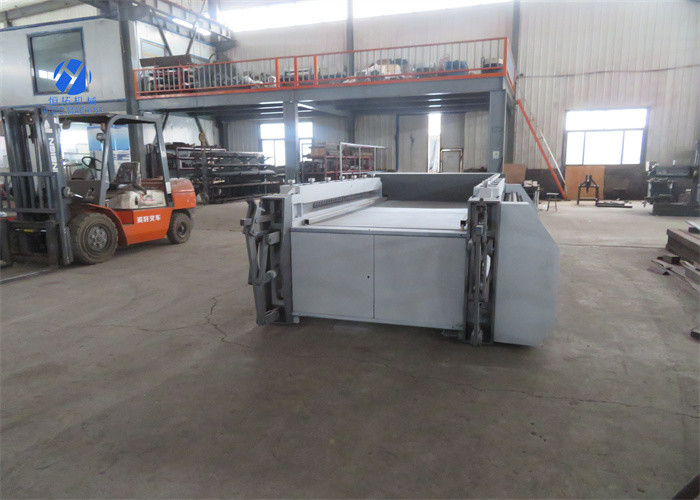

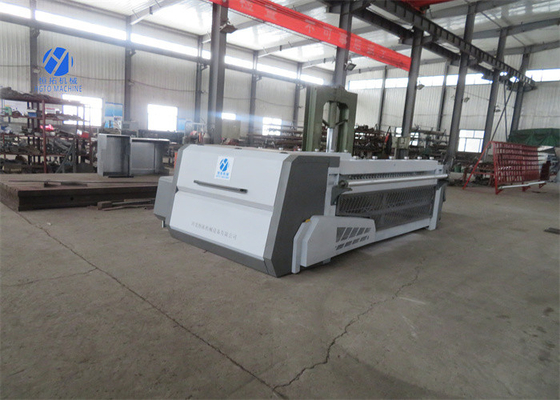

Main machine picture:
Finished mesh Picture:
Factory Picture:
