Product Details:
|
| Name: | Heave Hexagonal Wire Automatic Gabion Mesh Netting Machine | Key Selling Points: | High Quality |
|---|---|---|---|
| Product Name: | Gabion Machine For Making Gabion Box | Warranty Of Core Components: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width(mm): | Can Be Customized |
| Wire Diameter: | 1.6-3.2mm | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Min Open: | 30mm-250mm |
| High Light: | twisted gabion box making machine,3.5mm gabion box making machine,3.5mm gabion wire mesh machine |
||
Application :
Hexagonal wire netting machine is designed to produce hexagonal screens with galvanized low carbon steel wire in naomal twisting,suitable for structure,heat insulation,protective,and fencing applications.The machnes of this seises are of horizontal design,ensuring smooth running and high productivity.
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advantage of our Horizontal gabion wire mesh machine:
1. The new machine adopts horizontal type structure,Running smoother
2. Its easy to operate this machine,just need 1-2 workers is ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. Simple installation,No special technology needed
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.

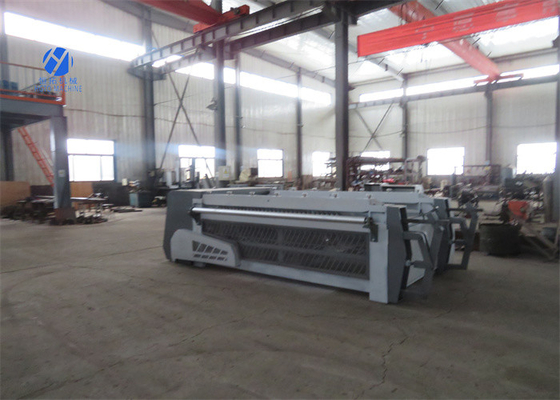

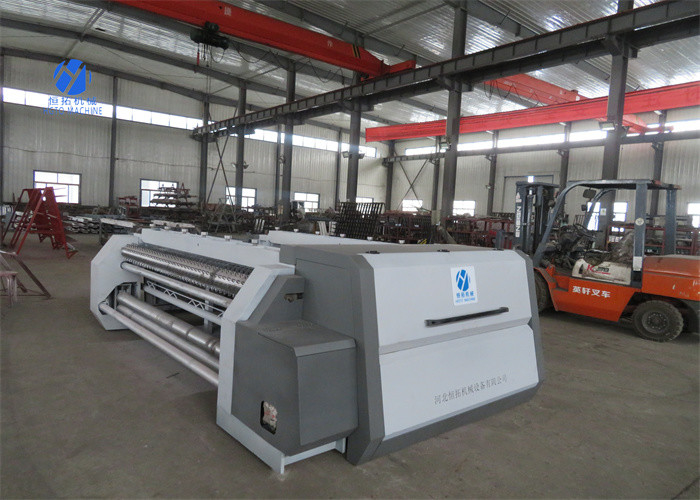

Main machine picture:
Factory Picture:
