Description:
|
Product Details:
|
| Name: | Heavy Type Gabion Box Making Machine For Stone Box Use | SPEED: | 50times/min, 200m/h |
|---|---|---|---|
| Weight: | 18.5t | Mesh Size: | Can Be Set According To Customer Requirements |
| Mesh Width: | Can Be Set According To Customer Requirements | Wire Diameter: | 4.0mm |
| Wire Diameter: | 1.6-3.5mm | Warranty: | 2 Years |
| Color: | Requirement | Application: | Gabion Box Weaving |
| Mesh Width: | Max. 4500mm | Speed: | 80-200m/h |
| High Light: | Gabion Wire Netting Machine,Multiscene Wire Netting Machine,Heavy Duty Chicken Wire Mesh Machine |
||
Heavy Type Gabion Box Making Machine For Stone Box Use
Gabion mesh machine, also called heavy duty hexagonal wire mesh machine or gabion basket machine, Stone cage machine, Gabion box machine, is to produce the hexagonal wire mesh for reinforcement stone box use.
Specifications of woven gabion cage:
Material : galvanized steel wire, Galfan coated wire, PVC coated wire.
Wire diameter : 2.0 mm × 4.0 mm.
Selvedge wire diameter : 3.0 mm - 3.4 mm.
Lacing wire diameter : commonly is 2.2 mm.
Mesh size : 5 cm × 7 cm, 6 cm × 8 cm, 8 cm × 10 cm, 8 cm × 12 cm, 10 cm × 12 cm.
Specification of heavy type gabion wire mesh machine:
| Model |
Mesh size
(mm) |
Max width
(mm) |
Wire diameter
(mm) |
Twisting number | Main drive shaft speed |
Motor
(kw) |
Speed
(m/h) |
| HGTO-6080M | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| HGTO-M80120 | 80*120 | 1.6-3.2 | 200 | ||||
| HGTO-100120 | 100*120 | 1.6-4.0 | 225 | ||||
| HGTO-120150 | 120*150 | 1.6-4.0 | 20 | 255 | |||
| Remark | can be set according to customer requirements | ||||||
Description:
Gabion mesh machine, also named heavy duty hexagonal wire mesh machine, is used to produce gabion mesh and stone box, widely used on landscape protection, construction, farming, petroleum, chemical industry, heating pipes, seawall, hillsides, road and bridge etc.
Advantage of heavy type gabion wire mesh machine:
1:drive mechanism is used to replace the gear swing arm mechanism.High speed, low vibration, high efficiency
2:Equipment control system adopts touch screen and PLC control, simple operation, man-machine dialogue interface.
3:The use of concentric Spindle rod greatly reduces the moment of inertia of the equipment and reduces the noise.
4:Equipment running time: 50 times /min, 200 meters /h.
5:Power: 380V, total power: 22KW, total weight: 18.5t
6:Matching automatic spring machine.
FAQ:
Q: What’s the machine price?
A: Please tell me your wire diameter, mesh hole size and mesh width
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: Can I make different mesh size on one machine?
A: The mesh size must be fixed. The mesh width can be adjusted.
Q: What’s your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.
Q: What’s the production capacity of this machine?
A: 200m/hour
Q: Can I make several mesh rolls one time?
A: Yes. It is no problem on this machine.

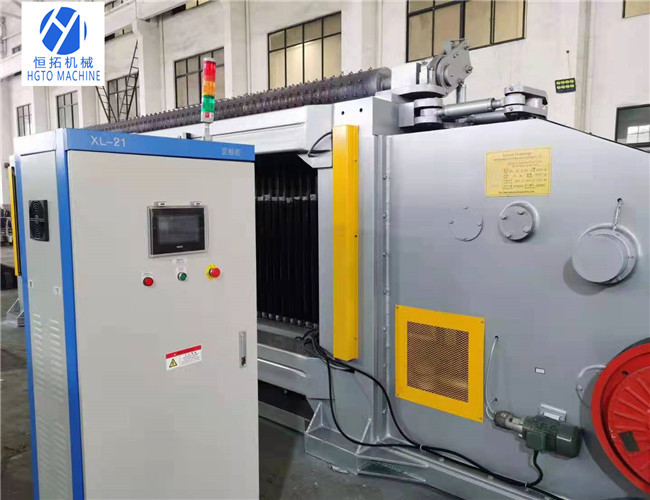

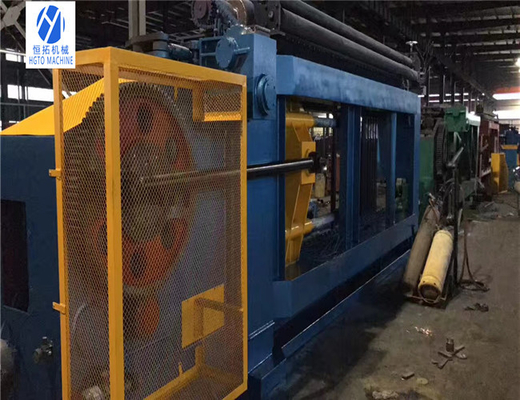

Machine Pictures:
