Product Details:
|
| Name: | Heavy Duty Hexagonal Wire Gabion Mesh Making Machine | SPEED: | 50times/min, 200m/h |
|---|---|---|---|
| Weight: | 18.5t | Mesh Size: | Can Be Set According To Customer Requirements |
| Mesh Width: | Can Be Set According To Customer Requirements | Wire Diameter: | 4.0mm |
| Wire Diameter: | 1.6-3.5mm | Warranty: | 2 Years |
| Color: | Requirement | Application: | Gabion Box Weaving |
| Mesh Width: | Max. 4500mm | Speed: | 80-200m/h |
| High Light: | Hexagonal Gabion Wire Mesh Machine,Multipurpose Gabion Wire Mesh Machine,Heavy Duty Gabion Wire Machine |
||
Heavy Duty Hexagonal Wire Gabion Mesh Making Machine
Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length canbe 50-55 mm.
Specification of heavy type gabion wire mesh machine:
Mesh size | Width | Wire diamater | Spindle Speed | Power of motor | Theoretic output |
(mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) |
60X80 | 2300 | 1.6-3.0 | 25 | 11 | 165 |
80X100 | 1.6-3.0 | 25 | 195 | ||
100X120 | 1.6-3.2 | 25 | 225 | ||
120X150 | 1.6-3.5 | 20 | 255 | ||
60X80 | 1.6-3.0 | 25 | 15 | 165 | |
80X100 | 1.6-3.2 | 25 | 195 | ||
100X120 | 1.6-3.5 | 25 | 225 | ||
120X150 | 1.6-3.8 | 20 | 255 | ||
60X80 | 1.6-2.8 | 25 | 22 | 165 | |
80X100 | 1.6-3.0 | 25 | 195 | ||
100X120 | 1.6-3.5 | 25 | 225 | ||
120X150 | 1.6-3.8 | 20 | 255 |
Advantage of heavy type gabion wire mesh machine:
1: drive mechanism is used to replace the gear swing arm mechanism.High speed, low vibration, high efficiency
2: Equipment control system adopts touch screen and PLC control, simple operation, man-machine dialogue interface.
3: The use of concentric Spindle rod greatly reduces the moment of inertia of the equipment and reduces the noise.
4: Equipment running time: 50 times /min, 200 meters /h.
5: Power: 380V, total power: 22KW, total weight: 18.5t
6: Matching automatic spring machine.
FAQ:
Q: What’s the machine price?
A: Please tell me your wire diameter, mesh hole size and mesh width
Q: Can you make the machine according to my voltage?
A: Yes, usually the popular voltages are 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: Can I make different mesh size on one machine?
A: The mesh size must be fixed. The mesh width can be adjusted.
Q: What’s your payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc. It is negotiable.
Q: What’s the production capacity of this machine?
A: 200m/hour
Q: Can I make several mesh rolls one time?
A: Yes. It is no problem on this machine.

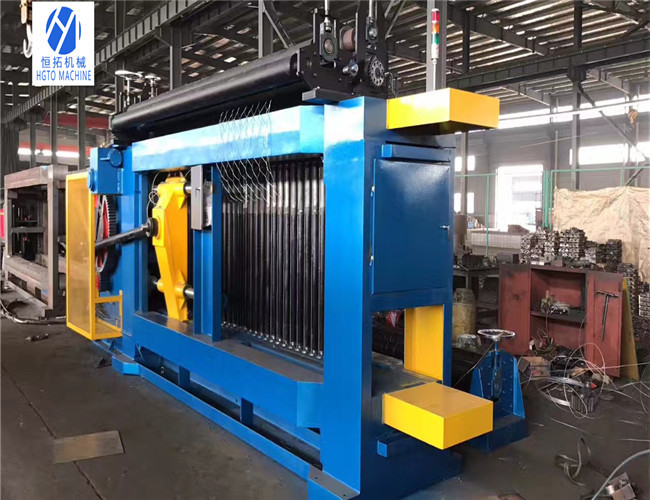

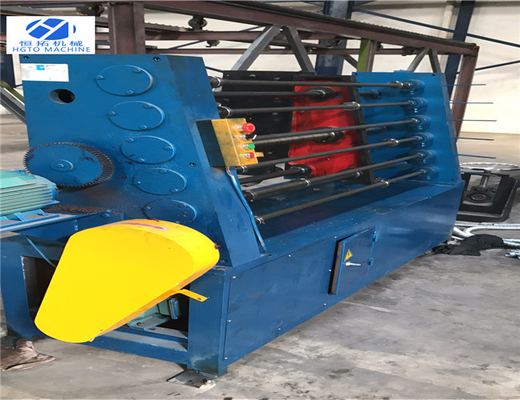

Machine Pictures:
