Product Details:
|
| Name: | 100*120mm , Seawall Use , Horizontal Gabion Wire Mesh Machine For Making Gabion Box | Weight (KG): | 5500 |
|---|---|---|---|
| Key Selling Points: | High Quality | Warranty Of Core Components: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width(mm): | Can Be Customized |
| Wire Diameter: | 1.6-3.5mm | Color: | Requirement |
| Mesh Size: | Can Be Customizable | Application: | Gabion Box Weaving |
| Power: | 5.5kw | Voltage: | 380V 50Hz 3Phase/Customized |
| High Light: | Multiscene Steel Wire Mesh Machine,Shockproof Steel Wire Mesh Machine,Seawall Expanded Metal Mesh Machine |
||
Gabion Box are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.
Specification of gabion wire mesh machine:
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advatageds:
1.The new machine adopts horizontal type structure,Running smoother
2.It has a small volume, it is easy to operate and just need 1 or 2 workers are ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. Simple installation,No special technology needed
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.
RFQ:
Q: Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang county, Hebei Province of China.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30years.Our factory was eatablished in 1988
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. So we can solve the customs clearance problem.

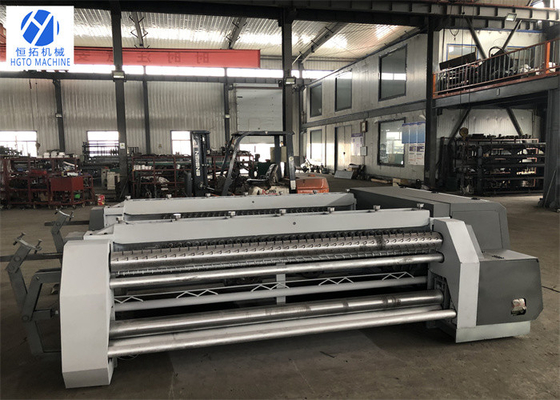

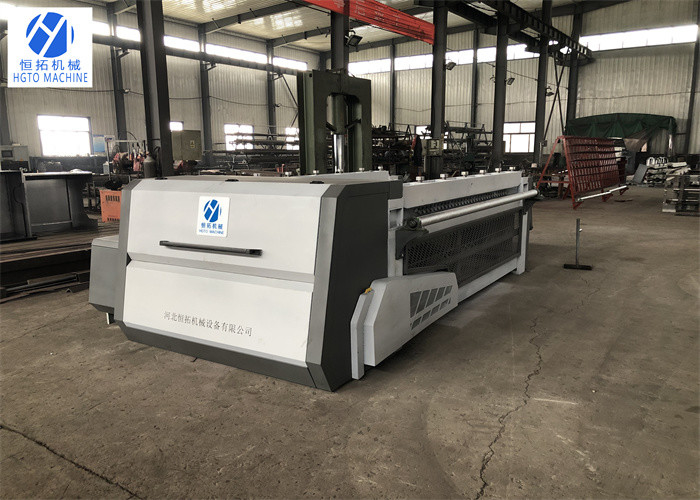

Machine picture:
Auxiliary equipment:
Finished mesh picture:
Our Factory:
