Product Details:
|
| Name: | PLC Control Steel Wire Drawing Machine For Making Iron Wire | Outlet Diameter: | 0.8-2mm |
|---|---|---|---|
| Machinery Test Report: | Provided | Core Components: | Gearbox, Bearing, Motor, PLC |
| Power: | 18.5-30kw | Weight: | 2000, Heavy Duty |
| Key Selling Points: | Competitive Price | Drawing Material: | Steel Wire,ss Wire |
| Quality: | Top Grade | Main Structure: | 16mm Steel Plate |
| Inlet Diameter: | 6.5-8mm | Video Outgoing-inspection:: | Provided |
| Warranty Of Core Components: | 1 Year | Service: | ODM Service |
| Motor: | Inverted Motor | ||
| Highlight: | PLC Automatic Wire Drawing Machine,Anticorrosive Automatic Wire Drawing Machine,50m/Min Wire Drawing Machinery |
||
PLC steel wire drawing machine
1.Product Introduction
Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.
2.Working flows and automation
Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up
|
Straight line Wire drawing machine
|
|||
|
Capstan diameter
|
560mm
|
||
|
Capstan numbers
|
11
|
||
|
Inlet wire diameter
|
Φ8.0mm
|
||
|
Outlet wire diameter
|
Φ2.0mm-Φ6.0mm
|
||
|
Tensile strength
|
≤600mpa
|
||
|
Total compressibility
|
90.53%
|
||
|
Average compressibility
|
25.52%
|
||
|
Max. Speed
|
12 m/s
|
||
|
Power
|
22 KW*11 (Frequency conversion motor )+22KW*11(inverter)
|
||
|
Mold size
|
Φ40mm×25
|
||
|
Block type
|
Vertical ,tilted
|
||
|
Take-up wire
|
Elephant trunk type take-up system
|
||
|
Tension frame
|
Internal tension frame.
|
||
|
Main frame
|
Welding of steel plate and square pipe.
|
||
|
Stop brake
|
Pneumatic brake
|
||
|
Vacuuming design
|
Reserve suction hole
|
||
|
Lighting
|
Each stand with separate lighting.
|
||
|
PLC
|
Siemens
|
||

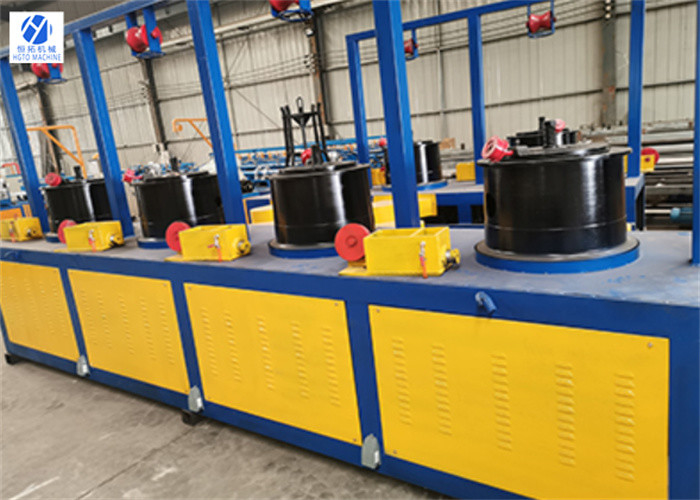

Machine Picture:
