Product Details:
|
| Name: | Stainless Steel Spring Line ， Large Vertical Wire Drawing Machine | Outlet Diameter: | 0.8-2mm |
|---|---|---|---|
| Machinery Test Report: | Provided | Core Components: | Gearbox, Bearing, Motor, PLC |
| Power: | 18.5-30kw | Weight: | 2000, Heavy Duty |
| Key Selling Points: | Competitive Price | Drawing Material: | Steel Wire,ss Wire |
| Quality: | Top Grade | Main Structure: | 16mm Steel Plate |
| Inlet Diameter: | 6.5-8mm | Video Outgoing-inspection:: | Provided |
| Warranty Of Core Components: | 1 Year | Service: | ODM Service |
| Motor: | Inverted Motor | ||
| Highlight: | Anticorrosive Pulley Wire Drawing Machine,30kw Pulley Wire Drawing Machine,ODM Nail Wire Drawing Machine |
||
Stainless Steel Spring Line , Large Vertical Wire Drawing Machine
Stainless steel spring line is widely used in various fields of national economy, automobile, electronics, daily necessities, switches, machinery, metallurgy, light industry and so on. The annual growth rate of spring product market in China has always been maintained in double digits. China has become one of the important investment, production and consumption markets of spring technology products in the world, and has gradually formed a spring industry market with great development potential.
Large vertical wire drawing machine application field
Widely used in steel wire, steel cable, construction components, galvanized iron wire, metal mesh, nail and other factories and mines for wire drawing.
Large vertical wire drawing machine structure
It is composed of main reducer, mold box, wheel rack, wire rack and electrical control system. Each drawing drum is driven by the motor through the gear coupling two different speed ratio of cylindrical gear deceleration, so that the drum rotating work, drawing drum is vertical, installed on the cover of the box, gear pair using immersion lubrication. The inner wall of the drum is equipped with cooling water spray device to reduce the residual heat on the surface of the drum of the wire transmission line after drawing. The drawing die is immersed in cooling water to reduce the working temperature of the mould.
Specification of Stainless Steel Spring Line :
|
Model |
HGTO-560 |
|
Dia. Of pot |
560 mm |
|
Number of blocks |
10 |
|
Wire diameter |
Inlet Max. 5.5mm and outlet Min. 1.6mm |
|
Compression (%) |
Max. 91.54 |
|
Average compression(%) |
21.88 |
|
Input wire tensile strength |
≤600mpa |
|
Max. wire feeding speed |
16.66m/ s (1000 m/ min) |
|
Motor |
22KW |
|
Mould size |
40mm* 25 |
|
Pot arrangement |
Upright |
| Wire feeding | From left to right |
We can design a solution according to your input and output wire diameter; or ribbed wire

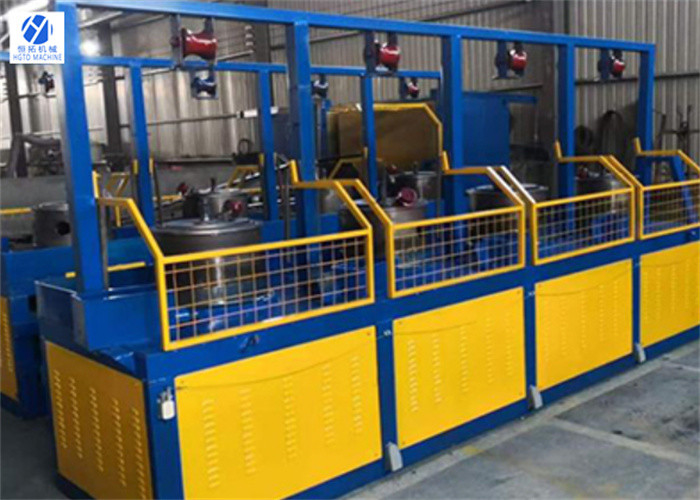

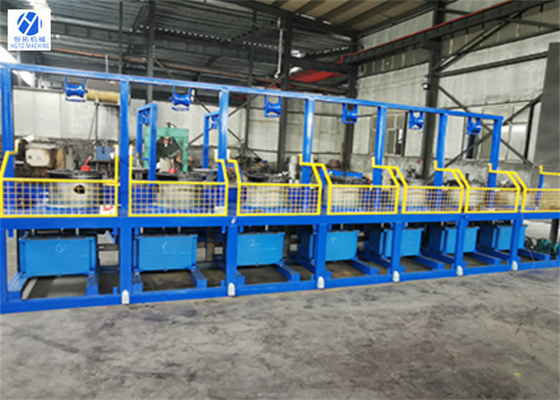

Machine Picture:
