Product Details:
|
| Name: | 2-3.5mm Chicken Mesh Making Machine Microcomputer Control Welded Wire Mesh Machine | Mesh Size: | 50*50 Mm-200*200 Mm |
|---|---|---|---|
| Weld By Minutes: | 60-100 Times | Place Of Origin: | Hebei,China |
| Warranty: | 1year | Type: | Welding Wire Machine |
| Core Components: | PLC,MOTOR | Wire Diameter: | 5-12mm |
| Color: | Can Be Customized | Voltage: | 380V/50HZ/Customized |
| Control System: | PLC | Width: | 2500mm |
| Highlight: | Galvanized Welded Wire Mesh Machine,Hot Rolled Welded Wire Mesh Machine,Shockproof Welded Wire Mesh Panel Machine |
||
2-3.5mm Chicken Mesh Making Machine Microcomputer Control Welded Wire Mesh Machine
welding, all kinds of high-speed rail, tunnel support mesh, iron mine underground safety mesh, coal mine, underground support mesh.
The welding resistance transformer of equipment is controlled by microcomputer, welding electronic control adopts the method of primary welding group power transmission, that is, when welding, the welding transformer is more reliable, more stable, faster and more intelligent; welding splash is small, reduce the burns of the welding point and prevent thermal deformation of the mesh.
The control cabinet is equipped with a cooling device to bring a good working temperature to the whole control cabinet. Equipment welding controller customized products for professional manufacturers.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 3.5+3.5mm | |
| 2 | Long wire diameter | ¢2-3.5mm | |
| 3 | Cross wire diameter | ¢2-3.5mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In coil | |
| 6 | Long wire spacing | ≥25mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥25mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤3000mm | Adjustable |
| 9 | Width range of wire mesh | ≤1600mm | Adjustable |
| 10 | Number of welding spot | 30PCS | |
| 11 | Working speed max. | 50-80times/min |
This device on 2-3.5mm Complete Set Of Chicken Mesh Making Machine can drag finished meshes so that meshes can be cut and stacked smoothly. It is also the necessary part in 2-3.5mm Complete Set Of Chicken Mesh Making Machine.
Mesh traction adopts 2-3.5mm Complete Set Of Chicken Mesh Making Machine brand CNC servo system control.
Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
Using the gear and the rack drive, the 2-3.5mm Complete Set Of Chicken Mesh Making Machine transmission efficiency is perfect.
Cross wire spacing can be designed freely in the operating interface on 2-3.5mm Complete Set Of Chicken Mesh Making Machine, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of 2-3.5mm Complete Set Of Chicken Mesh Making Machine.
2-3.5mm Complete Set Of Chicken Mesh Making Machine mesh traction device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.

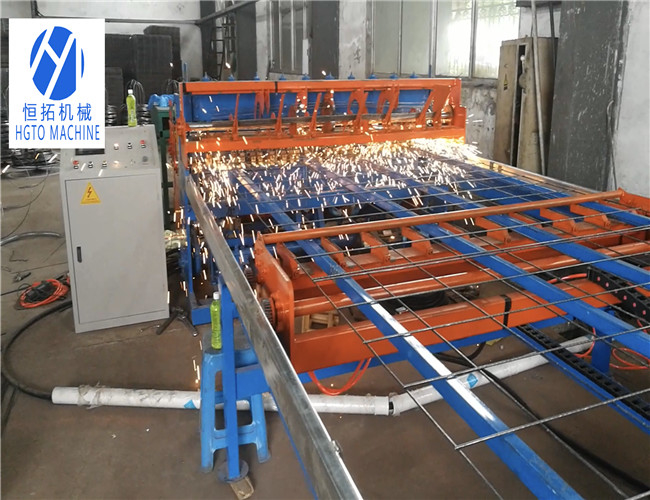

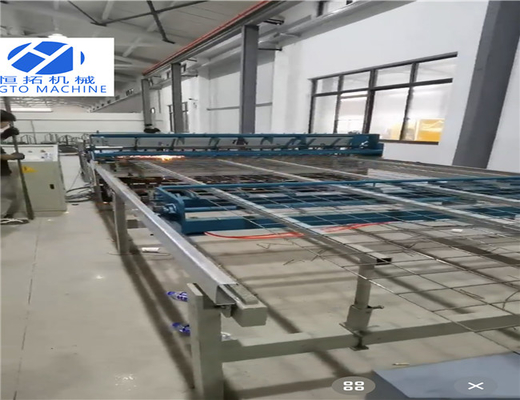

Machine detailes:
Picture of control cabinet:
Ready for delivery:
Workshop Image:
