Product Details:
|
| Name: | Chain Link Fencing Machine | Material: | Printed |
|---|---|---|---|
| Motor: | Servo Motor | Finish Product: | Chain Link Fence Mesh In Rolls |
| Mesh Width: | Max.6000mm ( Customized ) | Machine Type: | Double Wire Spiral Chain Link Fence Making Machine |
| Voltage: | 380v / 220v / 415v / 440v | Mesh Size: | 25 Mm-100 Mm |
| Color: | Requirement | Usage: | Weave Chain Link |
| Application: | For Making Chain Link Fence | ||
| High Light: | CNC Chain Link Fence Machine,Anti Corrosion Chain Link Fence Machine,Railway Automatic Chain Link Fence Machine |
||
Railway Use ,CNC Double Wire Chain Link Fence Making Machine
We can make two waves, three waves Guard Rail Roll Forming Machine for highway guardrail/fence application. No matter where to use the finished product of our Roll Forming Machine, I think the quality is important especially to keep the people safe.
Production Standard: JT/T 281-2007, JT/T 457-2007
Raw material: Q235A galvanized steel sheet
Advantages :
1. PLC (programmable Logic Controller)
2. Manufacturing chain link fences of different sizes
3. Servo motor 5.5kw(output power 16.5kw)
4. Alarm device which can stop the machine automatically or remind operator of feeding the machine timely.
5. Additional shutdown device to stop the machine conveniently
6. Single die double spiral.
7. Sides of chain link fence can be twisted or knuckled as required.
Specification:
| Model | HGTO-20 | HGTO-25 |
| Wire diameter | 1.6-4mm | 2-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2000kg | 4200kg |
Automatic machine for making a chain link mesh. This equipment allows you to start your own business. Mesh netting is a popular product. It is well bought in the market.
Easy and simple setup. The size of the mesh cell made on our machine can be different - from 25 mm to 60 mm. This equipment can be connected to 380 volts or 220 volts. The thickness of the wire used is from 1.2 mm to 3 mm. The machine is simple, it is easy to learn how to work. The productivity is high, two rolls of mesh can be made in 1 hour.
An important advantage of our machine is the presence of a frequency speed converter with which you can quickly change the speed of mesh production.
If you buy several machines at once, we will offer you a discount. We provide a one-year warranty for all machines. Delivery is carried out to any region. The machines meet a high level of quality.
You can get advice on the purchase of an automatic machine for the production of mesh by phone. Our specialists will answer all your questions.

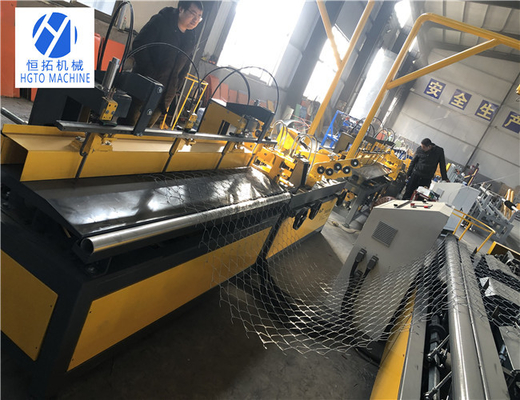

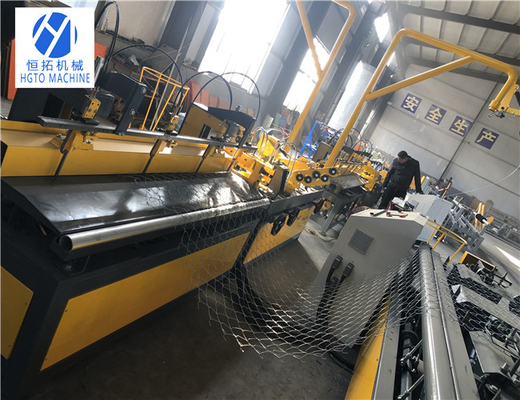

Machine Pictures:
Finished Mesh Picture:
