Product Details:
|
| Name: | Playground Use ，Servo Motor ，Diamond Fence Mesh Plc Chain Link Net Making Machine | Material: | Printed |
|---|---|---|---|
| Motor: | Servo Motor | Finish Product: | Chain Link Fence Mesh In Rolls |
| Mesh Width: | Max.6000mm ( Customized ) | Machine Type: | Double Wire Spiral Chain Link Fence Making Machine |
| Voltage: | 380v / 220v / 415v / 440v | Warranty: | 2 Years |
| Type: | Fully Automatic | Certification: | ISO9001,CE ISO |
| Color: | Requirement | Usage: | Weave Chain Link |
| Application: | For Making Chain Link Fence | ||
| High Light: | HGTO Chain Link Fence Machine,Rustproof Chain Link Fence Machine,Anticorrosive Diamond Mesh Making Machine |
||
Playground Use ,Servo Motor ,Diamond Fence Mesh Plc Chain Link Net Making Machine
Chain link fence machine is used to make chain link fences of different sizes in different industries. The wire that is used for the process is taken from a payoff stand that further gets passed through different dies, forming a diamond shape. Moreover, it also locks the edge of the mesh and provides automatic weaving in chain link mesh. The mesh that is produced by this machine is used for fencing purposes of the garden, school, college, playground, railway, airport, industries, etc.
Advantages :
1. PLC (programmable Logic Controller)
2. Manufacturing chain link fences of different sizes
3. Servo motor 5.5kw(output power 16.5kw)
4. Alarm device which can stop the machine automatically or remind operator of feeding the machine timely.
5. Additional shutdown device to stop the machine conveniently
6. Single die double spiral.
7. Sides of chain link fence can be twisted or knuckled as required.
Specification:
| Model | Single Wire | Double Wire |
| Wire diameter | 1.3-4mm | 1.5-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mould Dies | 2 sets mould for free | |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
| Operation | One person can operate two or three machines | |
1.We can provide detailed installation videos, Manuals, electrical schemes, layouts to help your machine installation.
2.Our best engineer to buyer’s factory for installation, debugging, and training.
3.We can provide online after-sales service is available.
4.We can provide free accessories for one year.
FAQ:
Q: Are you the factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 30 years. We can offer you high quality machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in ding zhou and Shijiazhuang county, hebei Province, China.All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ; 415V 50HZ;440V 60HZ etc
Q: How much is your machine ?
A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.

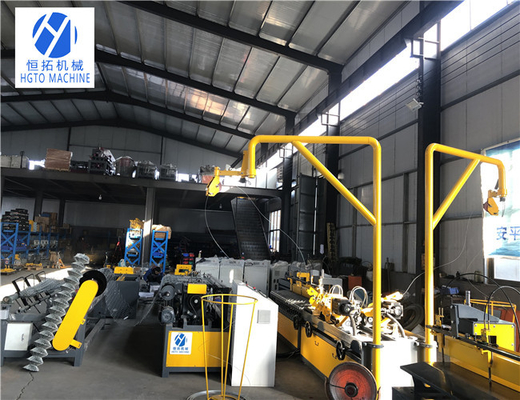

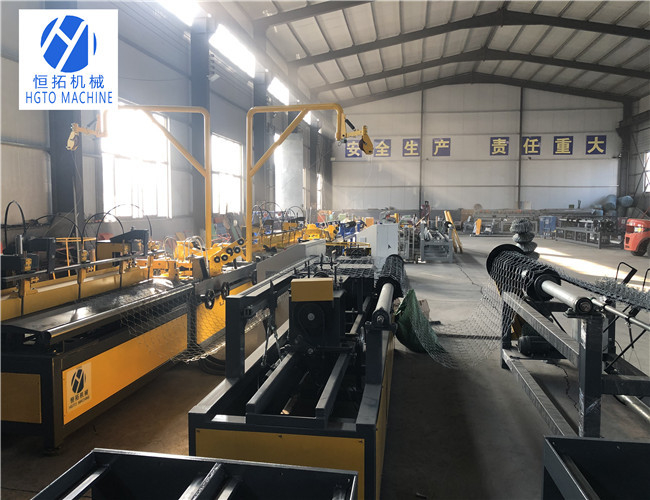

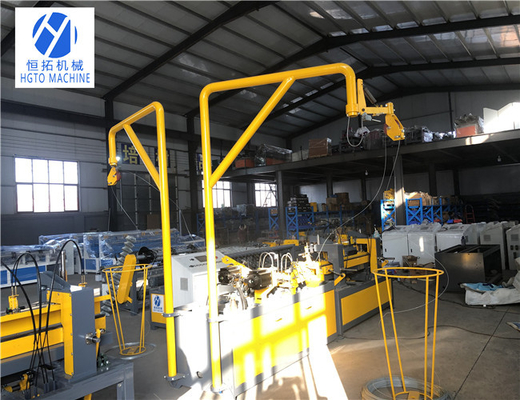

Machine Pictrues:
