Product Details:
|
| Name: | Chain Link Fencing Machine | Material: | Printed |
|---|---|---|---|
| Motor: | Servo Motor | Finish Product: | Chain Link Fence Mesh In Rolls |
| Mesh Width: | Max.6000mm ( Customized ) | Machine Type: | Double Wire Spiral Chain Link Fence Making Machine |
| Voltage: | 380v / 220v / 415v / 440v | ||
| High Light: | Rustproof Chain Link Mesh Machine,ISO Chain Link Mesh Machine,Fencing Mesh Making Machine |
||
3m Mesh Width , Garden Fencing PLC Galvanized Diamond Mesh Making Machine
Chain Link Fences also called diamond mesh fences, cyclone fences.The chain link wire mesh is formed by twisting wire raw material together. There are also two kinds of edges which are folded edge and twisted edge. The raw materials can be galvanized steel wire or PVC coated steel wire. The latter one can have custom colors and the most popular one is dark green.
Advantages :
1. The machine adopts aluminum alloy cantilever box for operation, which is simple and convenient.
2. The mesh rolling system is equipped with brake device, so the wire mesh will not reverse.
Specification:
| Model | Single Wire | Double Wire |
| Wire diameter | 1.3-4mm | 1.5-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mould Dies | 2 sets mould for free | |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
| Operation | One person can operate two or three machines | |
FAQ:
Q: Are you really factory?
A: Yes, We are a professional wire mesh machines manufacturer. We dedicated in this industry more than 30 years. We can offer you good quality machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in ding zhou and shijiazhunag county, hebei Province, China.All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, It can be customized according to our customer’s requirments.
Q: What's the price of your machine ?
A: Please tell me wire diameter, mesh size, and mesh width.

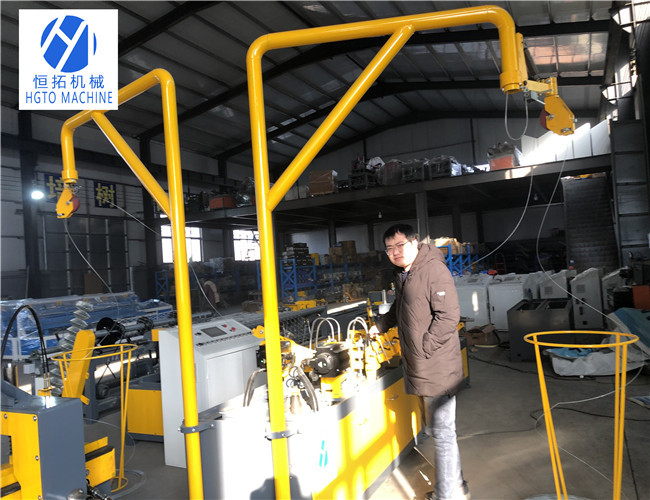

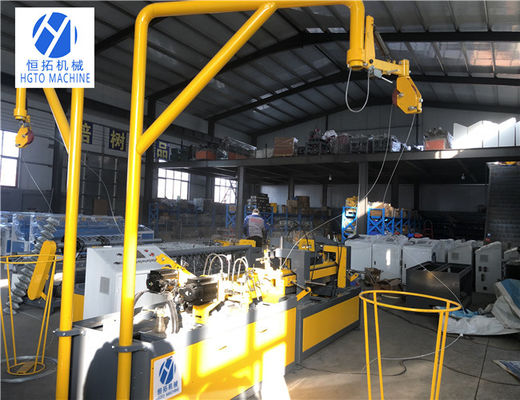

machine pictures:
Finished mesh picture:
