Product Details:
|
| Name: | Chain Link Fencing Machine | Material: | Printed |
|---|---|---|---|
| Motor: | Servo Motor | Finish Product: | Chain Link Fence Mesh In Rolls |
| Mesh Width: | Max.6000mm ( Customized ) | Machine Type: | Double Wire Spiral Chain Link Fence Making Machine |
| Voltage: | 380v / 220v / 415v / 440v | Wire Diameter: | 1.5-4.0mm |
| Warranty: | 2 Years | Mesh Width: | Max.4m |
| Usage: | Weave Chain Link | Application: | For Making Chain Link Fence |
| Mesh Opening: | 25 Mm To 100 Mm | ||
| Highlight: | Rustproof Chain Link Fence Making Machine,Anticorrosive Chain Link Fence Making Machine,Double Wire Chain Link Automatic Machine |
||
Double Wire ,Pvc Wire , Farm Fence Use , Chain Link Fence Making Machine
Working principle:
1.The wire is taken in from payoff stand and transported into dies where Diamond Size takes shape.
2. Finished wire is stitched as diamond holes.
3. At last, the chain link is automatically rolled by receiving wheels.
4.fences for playground and gardens, highway, railway,airport, port, etc.
Advantages :
1. PLC (programmable Logic Controller)
2. Manufacturing chain link fences of different sizes
3. Servo motor 5.5kw(output power 16.5kw)
4. Alarm device which can stop the machine automatically or remind operator of feeding the machine timely.
5. Additional shutdown device to stop the machine conveniently
6. Single die double spiral.
7. Sides of chain link fence can be twisted or knuckled as required.
Specification:
| Model | Single Wire | Double Wire |
| Wire diameter | 1.3-4mm | 1.5-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mould Dies | 2 sets mould for free | |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
| Operation | One person can operate two or three machines | |
FAQ:
Q: Are you the factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 30 years. We can offer you competitive machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in ding zhou and Shijiazhuang county, hebei Province, China.All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ; 415V 50HZ;440V 60HZ etc
Q: How much is your machine ?
A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.

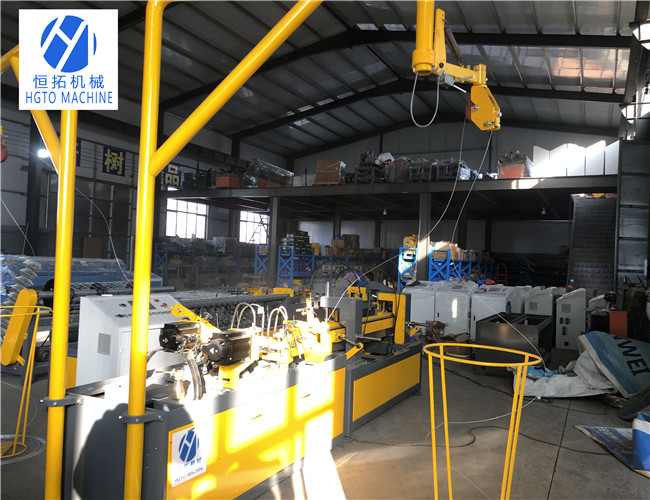

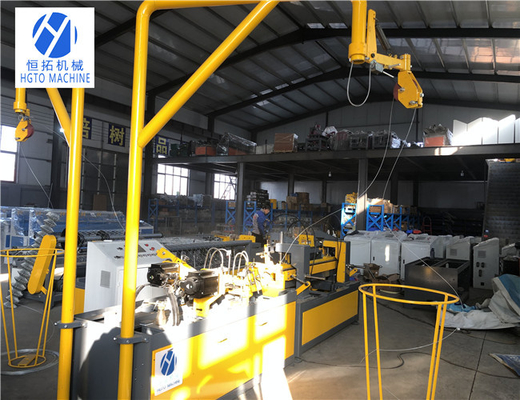

Main Machine Picture:
Auxiliary machine picture:
Finished mesh picture:
Factory Image:
