Product Details:
|
| Place Of Origin: | Horizontal Structure , 100*120mm , Gabion Box Hexagonal Gabion Wire Mesh Machine | Key Selling Points: | High Quality |
|---|---|---|---|
| Product Name: | Gabion Machine For Making Gabion Box | Warranty Of Core Components: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width(mm): | Can Be Customized |
| Color: | Requirement | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Voltage: | 380V 50Hz 3Phase/Customized |
| Type: | Automatic | Speed: | 80-200m/h |
| Highlight: | 3 Twisted Gabion Lacing Wire Machine,Electric Gabion Lacing Wire Machine,Erosion Resistant Stone Cage Machine |
||
Application:
Retaining wall Control and guide of water or flood Flood bank or guiding bank Preventing of rock breaking Water and soil protection Bridge protection Strengthening structure of soil Protection engineering of seaside area
Specification of our main machine:
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advantages:
1.The new machine adopts horizontal type structure,Running smoother
2.It has a small volume, it is easy to operate and just need 1 or 2 workers are ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4.Its high quality with low cost, the cost of the new machine decreased than our traditional type.It will greatly improve the benefit space of our customers.
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.
RFQ:
Q: Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang county, Hebei Province of China.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30years.Our factory was eatablished in 1988
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. So we can solve the customs clearance problem.

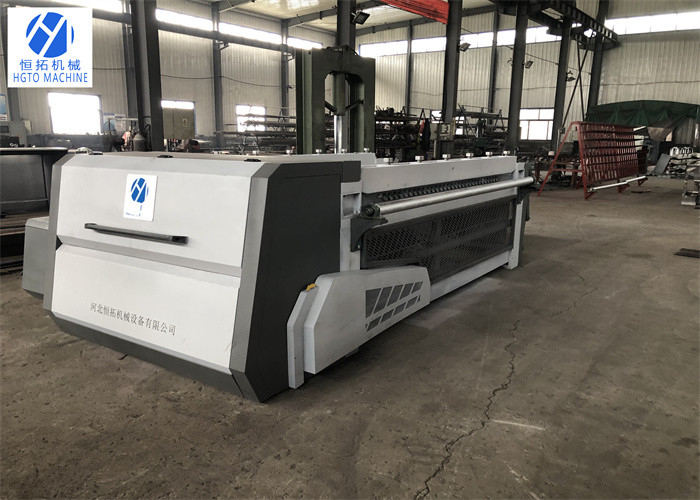

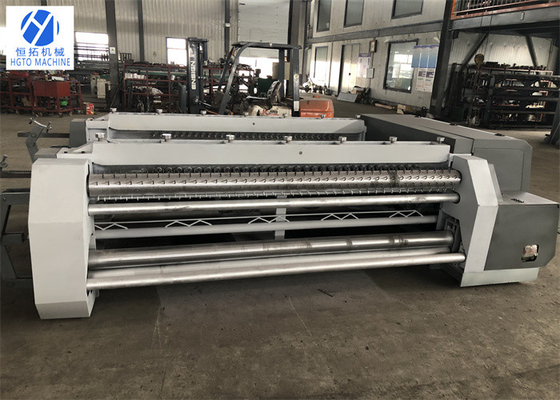

Main machine Picture:
finished product picture:
Our Factory:
